Centerline by Hobart CDL-1 Chemical Sanitizing Door-Type Dish Machine
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 200 lbs |
|---|---|
| Brand | Centerline |
| Model | CDL |
| Manufacturer Code | CDL-1 |
| Product Line | Centerline by Hobart |
| Dishwasher Style | Door Type |
| High or Low Temp | Low temperature, chemical sanitizing |
| Racks Per Hour | 51 |
| Water Usage | 0.86 gal per rack |
| Wash Tank Capacity | 4 gal |
| Wash Horsepower | 0.52 HP |
| Voltage | 120 V |
| Phase | 1 Phase |
| Hertz | 60 Hertz |
| Amps | 17.1 A |
| Minimum Water Temp | 120°F (140°F recommended) |
| Door Opening Height | 17-7/16″ (18″ pillarless opening) |
| Dishwasher Height | 62-15/16″ closed / 82-1/16″ door open |
| Water Inlet Size | 3/4″ female garden hose |
| Construction | Stainless Steel |
| Width | 24 1/8 Inches |
| Shipping Weight | 215 lb |
| Depth | 25 13/16 Inches |
| Height | 62 15/16 Inches |
| Table Height | 34-15/16″ |
| Dishes per Hour | 1,275 |
| Glasses per Hour | 2,295 |
| Tank Heat | 2 kW electric |
| Drain Pump | 0.04 HP |
| Water per Hour | 43.9 gal (max.) |
| Rack Size | 19-3/4″ × 19-3/4″ |
| Minimum Circuit / Max Fuse | 20 A / 20 A |
| Chemical Pumps | Detergent, rinse aid and sanitizer (standard) |
| Heat Gain (no hood) | 2,300 BTU/hr latent, 1,000 BTU/hr sensible |
| Installation | Straight-through or corner |
Description

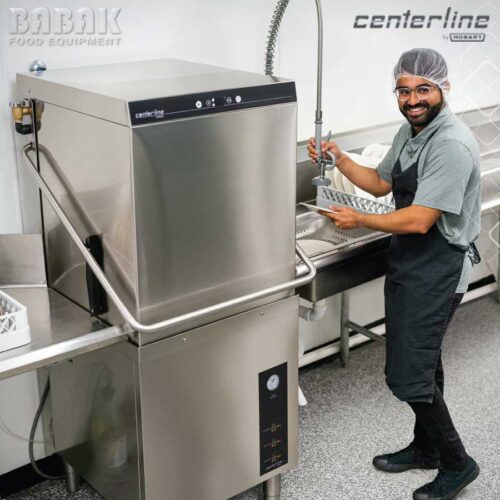

The Centerline by Hobart CDL (CDL-1) is a chemical sanitizing door-type dish machine for independent restaurants that want Hobart quality with simple controls. It washes up to 51 racks per hour on just 0.86 gallons of water per rack, sanitizes with chemicals instead of a booster heater, and runs on a single 120 V circuit. The recirculating design saves water compared with fill-and-dump machines.
Key features
- 51 racks per hour – about 1,275 dishes or 2,295 glasses per hour
- Chemical sanitizing with built-in detergent, rinse aid and sanitizer pumps
- Recirculating design using 0.86 gal per rack (43.9 gal per hour maximum)
- Top-mounted controls with digital temperature display, one standard cycle and an optional extended cycle
- 4-sided door with an 18″ pillarless opening that fits a single sheet pan
- Snap-in revolving upper and lower anti-clogging wash and rinse arms; removable two-part stainless steel scrap screen
- Automatic fill, automatic pumped drain, soft start, door-actuated start, service diagnostics and delime notification
- Field convertible from straight-through to corner installation
Options
- Chemical sensing indicators (low chemical alert)
- Corner splash kit
- Water hammer arrestor kit
- Pumped drain air gap kit
- Peg rack and combination rack
- Flanged feet
Ideal for
Independent restaurants, cafés, pubs, schools and care homes that want a door-type dishwasher without a booster heater or 3 phase power.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What does a Hobart CDL-1 need to install?
It needs 120 V / 60 Hz / 1 phase (17.1 A, 20 A circuit), a 3/4″ garden-hose water supply at 120°F minimum (140°F recommended) and a drain. Hobart recommends 20–25 PSI flowing water pressure and water hardness of 3 grains or less.
What is the difference between the CDL and CDH?
The CDL sanitizes with chemicals and runs on 120 V. The CDH sanitizes with a 180°F final rinse from its built-in booster, needs 208/240 V and uses 0.73 gal per rack.
Where can I find the CDL-1 spec sheet and manual?
The official Centerline spec sheet and operator manual are in the download section below.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
