Hoshizaki IM-50BAA-LM Square Cube Ice Machine, Air-Cooled, 22 lb Built-In Bin
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 115 lbs |
|---|---|
| Brand | Hoshizaki |
| Model | IM-50BAA-LM |
| Manufacturer Code | IM-50BAA-LM |
| Ice Type | Large square cube (2by2), 1.9″ × 1.9″ × 2.3″ |
| Output | 50 lb / 24 h (70°/50°F), 45 lb (90°/70°F) |
| Top Capacity | 22 lb built-in bin |
| Condenser Type | Air-cooled, self-contained |
| Refrigerant Type | R-134a (6.0 oz) |
| Voltage | 115 V |
| Phase | 1 Phase |
| Hertz | 60 Hertz |
| Amps | 5.0 A |
| NEMA | 5-15P |
| Cord Length | 6.5 ft |
| Installation Type | Undercounter |
| Construction | Stainless steel exterior |
| Certificate | NSF/ANSI 372 |
| Width | 19 3/4 Inches |
| Shipping Weight | 137 lb |
| Depth | 17 3/4 Inches |
| Height | 39 1/2 Inches (with 6″ legs) |
| Cube Weight | 4.2 oz approx. |
| Energy Use | 15.7 kWh per 100 lb (90°/70°F) |
| Heat Rejection | 1,500 BTU/hr |
| Max Fuse | 15 A |
| Ambient Temperature Range | 45–100°F |
| Water Temperature Range | 45–90°F |
| Water Pressure | 10–113 PSIG |
| Voltage Range | 104–127 V |
| Water Supply | 1/2″ nominal ID |
| Drain Line | 3/4″ nominal ID |
| Clearance | 6″ top and rear, 6″ on one side |
Description
The Hoshizaki IM-50BAA-LM is an undercounter ice machine that makes large, clear 2″ square cubes for cocktail bars, restaurants and hotels. Each solid 1.9″ × 1.9″ × 2.3″ cube chills drinks fast, melts slowly and looks great in the glass. It produces up to 50 lb of ice a day into a 22 lb built-in bin, and its small footprint fits under most bar counters.
Key features
- Up to 50 lb of ice per 24 hours (about 172 cubes) at 70°F air / 50°F water; 45 lb at 90°/70°
- Large, clear 2by2 cubes – 1.9″ × 1.9″ × 2.3″, about 4.2 oz each
- Built-in storage bin holds 22 lb of ice
- Air-cooled, self-contained, with an easy-to-clean removable air filter
- Closed water circuit for strong contamination protection
- Durable stainless steel exterior and HFC-free foamed polyurethane insulation
- Panels remove easily, with all components accessible for service
- Ice scoop and 6.5′ cord with NEMA 5-15P plug included · NSF/ANSI 372
Included
- Ice scoop
- 6.5′ power cord with NEMA 5-15P plug
Ideal for
Cocktail bars, lounges, fine-dining restaurants, hotels and cafés that serve premium drinks with large cubes.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What size are the cubes from the Hoshizaki IM-50BAA-LM?
It makes clear, solid square cubes of about 1.9″ × 1.9″ × 2.3″ (48 × 48 × 58 mm), roughly 4.2 oz each. A small dimple forms on one side during freezing.
Is the IM-50BAA-LM the same as the IM-50BAA-Q?
They share one installation and service manual. The -LM model makes the large 2″ square cube described here. Ask our team if you need help choosing.
What does the IM-50BAA-LM need to install?

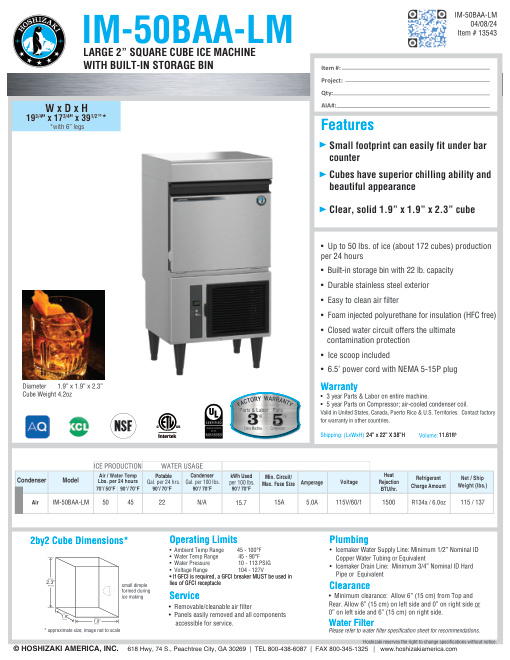

A 115 V / 60 Hz outlet (5.0 A, 15 A fuse), a 1/2″ water supply line, a 3/4″ drain line and 6″ clearance at the top, rear and one side. The official spec sheet is in the download section below.
