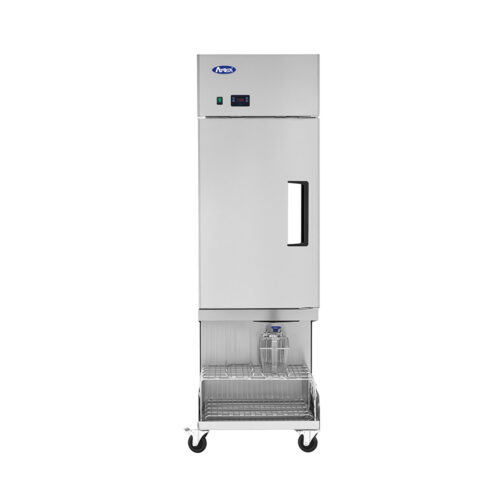

Atosa ACWF-1HL Single-Hopper Frozen Food Dispenser for Fries and Nuggets

Description

The Atosa ACWF-1HL is a single-hopper frozen food dispenser that portions frozen fries or nuggets into fry baskets at the press of a button, so the fryer station keeps up without staging full baskets ahead of the rush. At 23-5/8″ wide it suits quick-service restaurants, bars and concession counters where space is tight, and it simply rolls into place and plugs into a standard 115 V outlet.

Key features

• Fries cooked from frozen – Atosa says this improves quality and consistency.
• Rapid basket refill – keeps the fryer running without staging full baskets.
• One hopper – Atosa lets the number of hoppers and dispensing mechanisms be selected, for multi-product use or faster dispensing.
• One-handed operation – set the fry basket in place and give a slight push to drop the fries.
• Small, medium and large portion buttons – a set weight for each portion, shown on the screen.
• Hopper outage alarm – an individual alarm tells staff when a hopper needs filling.
• Roll in and plug in – quick installation in the restaurant.
• Fully removable trays and racks – simple to assemble and clean.

How the ACWF-1HL fits your kitchen

The ACWF-1HL fits a single fryer bank in a quick-service kitchen or bar. It stands 77-1/4″ tall, 29-3/8″ deep and 23-5/8″ wide and weighs 330 lb. It needs a 115 V, 60 Hz outlet drawing 2.8 A (plug 5-15P), and an independent, dedicated grounded socket. Atosa says to run it empty for at least one hour before loading product, and to wait five minutes before restarting after a power cut.

Other sizes in this series

• ACWF-1HR – 23-5/8″ wide, one hopper (40 lb fries or 50 lb nuggets); the sheet lists L and R versions.
• ACWF-2HL – 28-7/8″ wide, two hoppers (30 lb fries or 40 lb nuggets each).
• ACWF-3H – 40-5/8″ wide, three hoppers (30 lb fries or 40 lb nuggets each).

Why buy from Babak Food Equipment?

• Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
• 20+ years in business and a 4.9★ Google rating from 380+ reviews.
• Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
• Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

What does the Atosa ACWF-1HL need to run?
It plugs into a 115 V, 60 Hz outlet (5-15P) and draws 2.8 A. Atosa asks for an independent, dedicated and properly grounded socket. If the supply varies by more than 10%, the manual advises an automatic voltage stabilizer.

How do I clean the ACWF-1HL?
Clean the interior and door every day. Switch off and unplug, empty the hopper, remove the accumulator housings and chute, let it defrost with the doors open, then wash the removable parts with dish detergent and warm water.

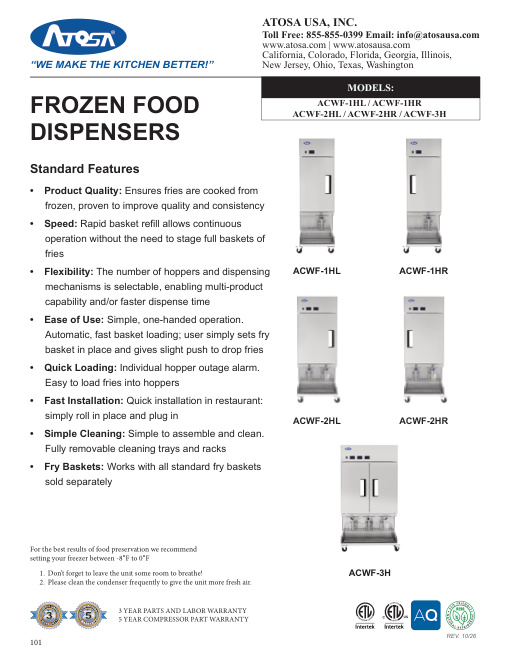

Where can I find the ACWF-1HL spec sheet?

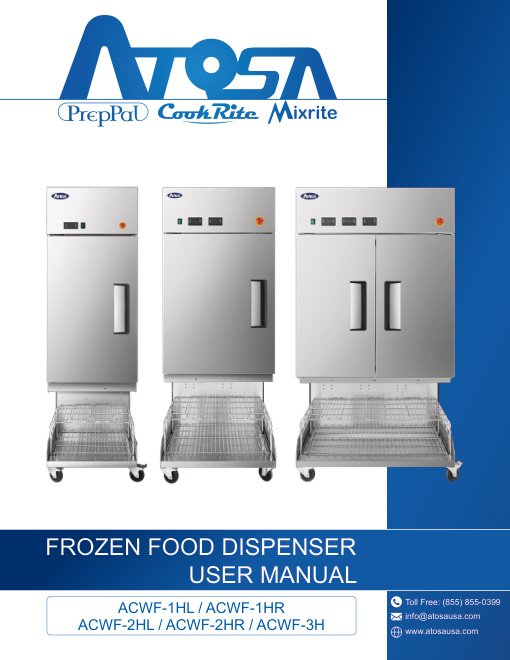

The official Atosa spec sheet and user manual are in the download section below. They list dimensions, electrical data, hopper capacity and weights, so you can check them before you order.

What is the difference between the ACWF-1HL and ACWF-1HR?
Atosa lists them as the L and R versions of the single-hopper model, with the same capacity, current draw (2.8 A) and weight (330 lb). The manual explains reversing the door hinge, so ask our team which hand suits your fryer line.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
