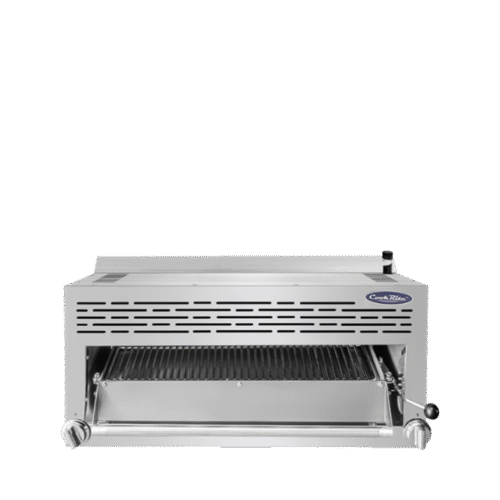

Atosa ATSB-36 36″ Infrared Salamander Broiler, 43,000 BTU

Description

Finish plates at eye level with the Atosa ATSB-36, a 36″ infrared salamander broiler with two ceramic burners rated 21,500 BTU/h each. Atosa lists it for natural gas or propane (LP), and it melts cheese, glazes sauces and browns toppings quickly. Two independent valves let you heat one side or both, and the range mount kit is included. Details and downloads are below.

Key features

• Two 21,500 BTU/h ceramic infrared burners – 43,000 BTU/h in total for intense top-down heat.
• Dual valve controls – run the left and right sides independently.
• Standby pilots – burners relight quickly during service.
• 1 minute pre-heat time – ready for finishing and melting without a long wait.

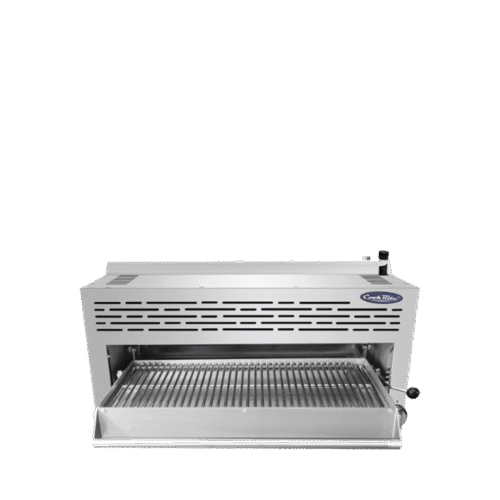

• 4 position rack adjustments – bring food closer to or further from the burners.
• Removable chrome rack and crumb/grease tray – lift out for fast cleanup.
• Stainless steel exterior and interior – tough and easy to wipe down.
• Range mount kit included – ships with the broiler, for use on an Atosa 36″ range.
• Optional wall mount kit – part # 21208001048.

How the ATSB-36 fits your kitchen

A salamander finishes dishes at eye level: browning cheese, glazing sauces and toasting garnish. The ATSB-36 is 36″ wide, 18″ deep and 17-1/3″ high and weighs 143 lb. It runs on natural gas (5″ W.C.) or propane (10″ W.C.) with the regulator set to match, and must sit under a compatible cooking fume exhaust hood per local ventilation codes. Atosa’s manual includes a clearance table, calls for a flat, non-combustible mounting, and recommends yearly inspection by a licensed technician. The included range mount fits an Atosa 36″ range.

Pairs with

• AGR-6B – Atosa’s 36″ gas range with six open burners and a standard oven, the size the range mount is made for.

Why buy from Babak Food Equipment?

• Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
• 20+ years in business and a 4.9★ Google rating from 380+ reviews.
• Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
• Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

What gas and installation does the Atosa ATSB-36 need?
It runs on natural gas (5″ W.C.) or propane (10″ W.C.), with 21,500 BTU/h per burner. Install it under a compatible exhaust hood, follow the manual’s clearance table, and use a licensed gas technician to connect and pressure-test it.

How do I clean the ATSB-36?
Let it cool and shut the control valves. Wipe the body daily with a soft cloth and mild detergent, and clean the catch tray after each use. Do not hose down or pressure wash the unit, except the tray, and never use abrasive or corrosive cleaners.

Where can I find the ATSB-36 spec sheet?
The official Atosa spec sheet, manual and parts breakdown are in the download section below, so you can confirm dimensions, BTU ratings, gas connection and working area for the ATSB-36 before you order.

Can the ATSB-36 sit on any range?
No. Atosa notes the included range mount is compatible only with an Atosa 36″ range. An optional wall mount kit, part # 21208001048, is listed by Atosa for wall mounting instead.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
