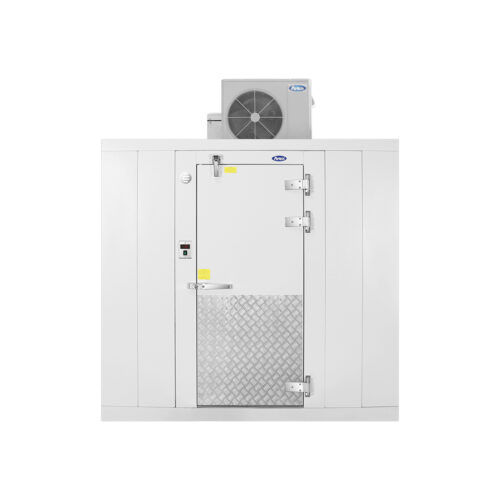

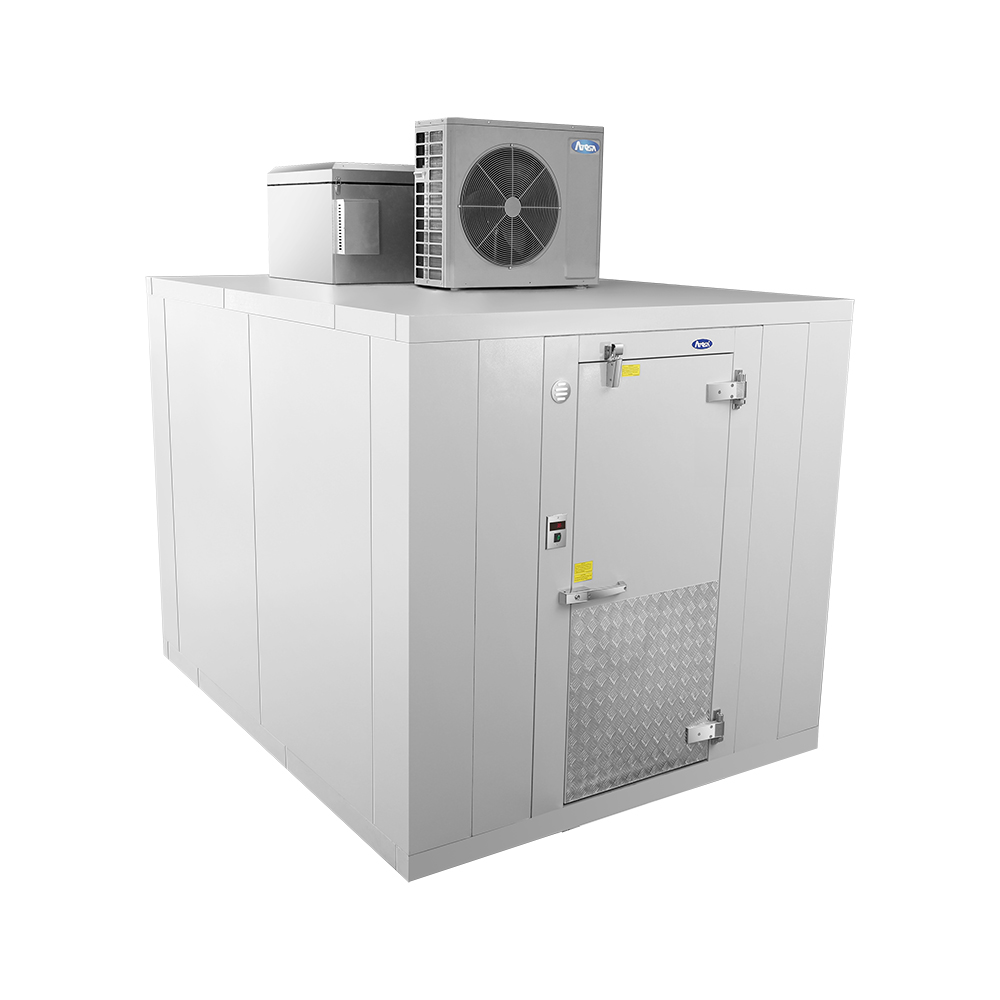

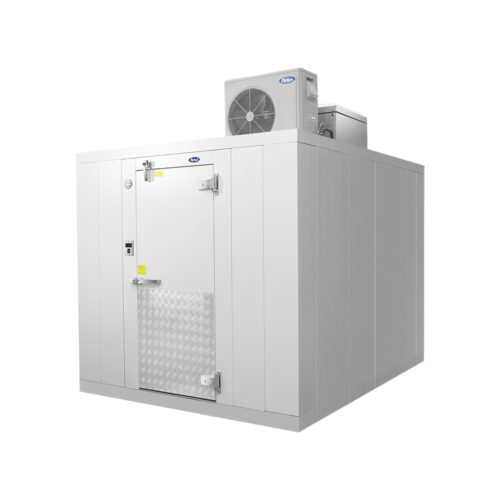

Atosa AWC0608-TF-IL/IR 6′ x 8′ Walk-in Cooler with Top-Mount Refrigeration

Description

The Atosa AWC0608-TF-IL/IR is a 6′ x 8′ walk-in cooler for restaurants, cafés and small commissaries that need real cold storage without a huge footprint. It is built from insulated 4″ panels with a top-mount refrigeration system, and it holds 35°F to 38°F for produce, dairy, beverages and prep. If you are comparing Atosa walk-in coolers by size, this is the smallest in the AWC range.

Key features

• White exterior and interior – a bright, clean look that is easy to wipe down.
• Foamed-in-place 4″ panels with cam locks – R-29 insulation, and panels that lock together on site.

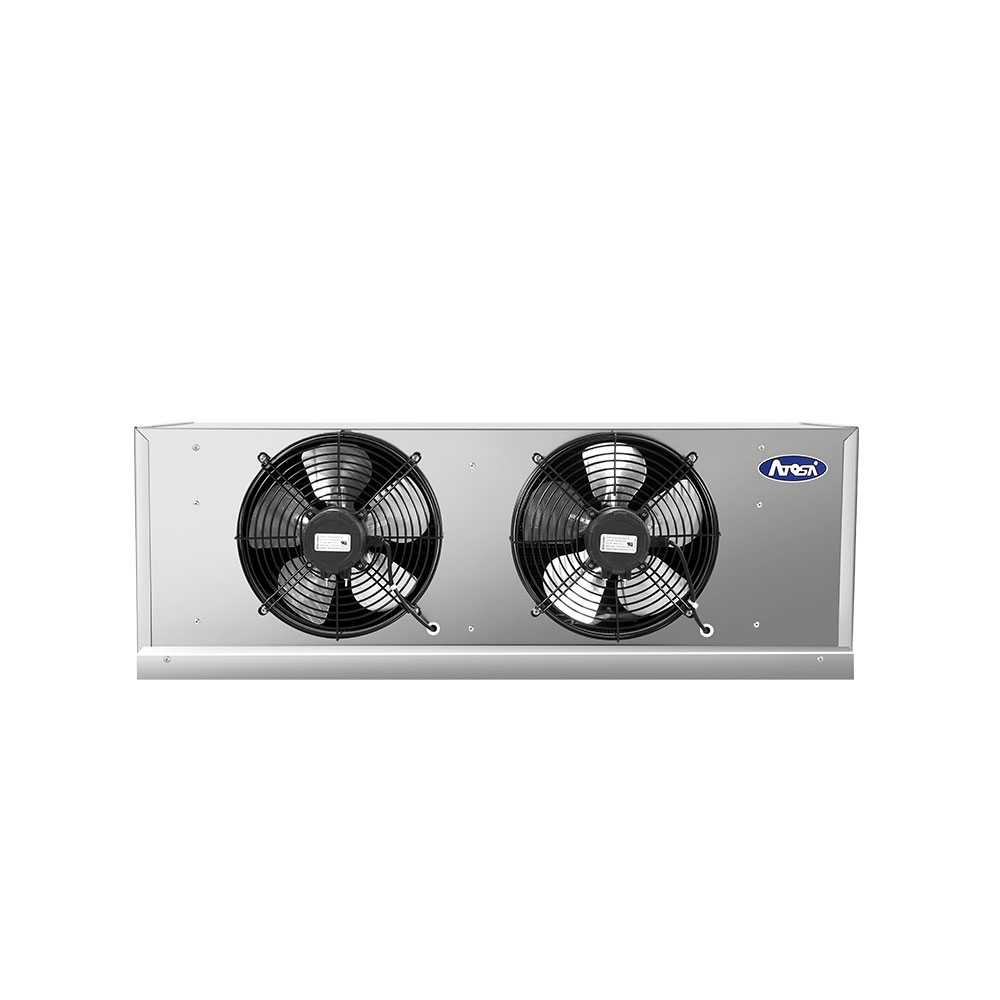

• Top-mount drop-in refrigeration – R448A refrigerant and a low noise level.
• Holds 35°F to 38°F – the right range for produce, dairy and beverages.
• 36″ door with heated frame – diamond-tread kick plates for a door that takes daily traffic.
• Kason hardware – three spring-loaded hinges, a closer, and a lockable handle with inside safety release.
• Interior ramp and reinforced floor – both standard, so carts and dollies roll in.
• Digital LED light plus a 48″ ceiling-mount LED – bright, even lighting over the shelves.

How the AWC0608-TF-IL/IR fits your kitchen

The AWC0608-TF-IL/IR gives a small restaurant, café or bakery a 72″ x 96″ cold room that is 117″ high with the condensing unit in place. Atosa recommends an 11′ ceiling. It draws 12 A at 208-240 V single phase on a 30 A breaker. Plan for a level floor with a vapor barrier, 2″ of clearance around the panels, door-swing space, and an indoor room at 30% to 60% relative humidity.

Other sizes in this series

• AWC0808-TF-IL/IR – 8′ x 8′ (96″ x 96″), a mid-size box.
• AWC0810-TF-IL/IR – 8′ x 10′ (96″ x 120″), more room for racking.
• AWC1010-TF-IL/IR – 10′ x 10′ (120″ x 120″), listed on the same Atosa spec sheet.
• AWC1012-TF-IL/IR – 10′ x 12′ (120″ x 144″), with a 3 HP system and 40 A breaker.

Why buy from Babak Food Equipment?

• Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
• 20+ years in business and a 4.9★ Google rating from 380+ reviews.
• Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
• Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

What does the Atosa AWC0608-TF-IL/IR need for installation?
It needs 208-240 V, 60 Hz, single phase power at 12 A with a 30 A breaker. The manual calls for a level, smooth base, a vapor barrier, and a climate-controlled indoor space.

How do I care for the AWC0608-TF-IL/IR?
Keep the floor free of spills and food, since moisture creates a slip hazard. Check the ramp strips, gaskets and hardware, and avoid leaving the door open. The manual suggests vinyl strip curtains to keep warm, moist air out.

Where can I find the AWC0608-TF-IL/IR spec sheet?
The official Atosa spec sheet and the walk-in installation manual are in the download section below. They cover sizes, electrical data, panel and refrigeration weights, and the assembly steps for the whole AWC series.

How big is the AWC0608-TF-IL/IR?
It is a nominal 6′ x 8′ walk-in cooler. Atosa lists exterior dimensions of 72″ x 96″ x 117″, where 117″ is the overall height with the condensing unit installed. The box itself is 7’6″ high, and a ceiling height of 11′ is recommended.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
