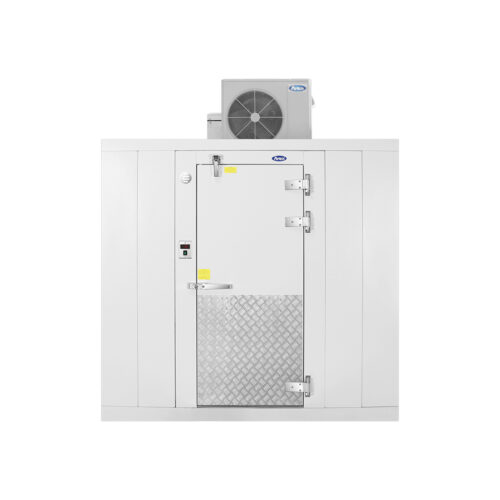

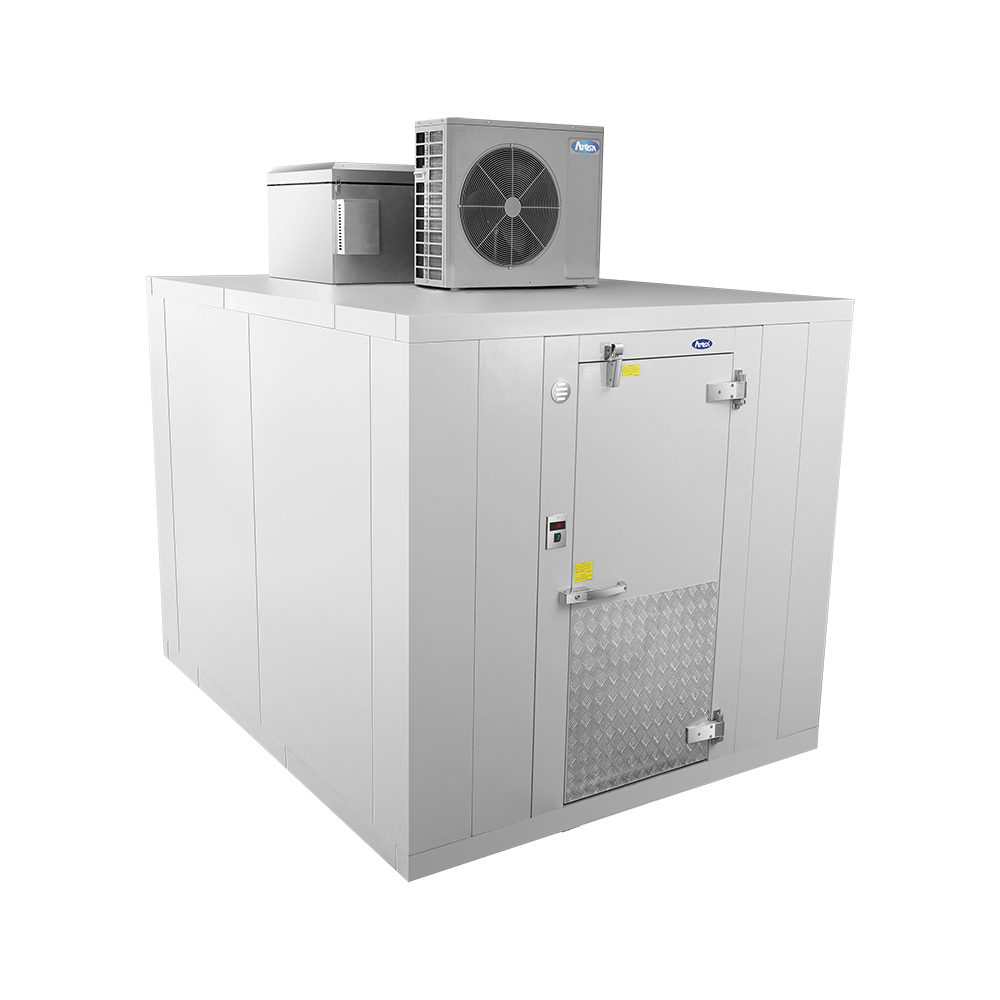

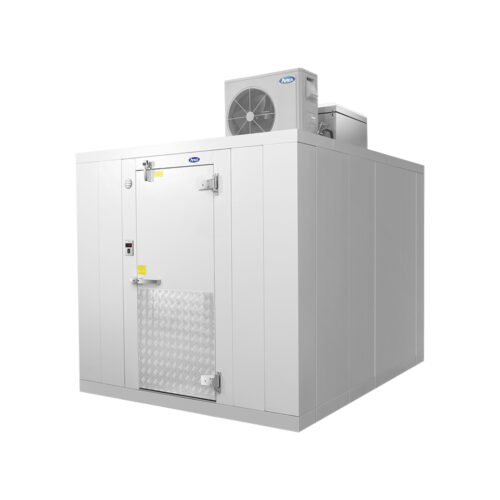

Atosa AWC0810-TF-IL/IR 8′ x 10′ Walk-in Cooler with Top-Mount Refrigeration
Exclusive Price :
Need Help :
Specs
| Brand | Atosa |
|---|---|
| Model | AWC0810-TF-IL/IR |
| Width | 96″ |
| Nominal Width | 8′ |
| Nominal Depth | 10′ |
| Voltage | 208-240 V |
| Hertz | 60 Hz |
| Phase | Single Phase |
| Amperage | 12 A |
| HP | 1.5 HP |
| Refrigerant Type | R448A |
| Temperature Range | 35°F to 38°F |
| Insulated | Foamed-in-place 4″ panels, R-29 |
| Color | White exterior and interior |
| Number of Doors | 1 |
| Refrigeration Type | Top-mount drop-in |
| Installation Type | Indoor |
| Depth | 120″ |
| Height | 117″ (overall, with condenser installed) |
| Box Height | 7’6″ |
| Breaker | 30 A |
| Condensing Unit Weight | 216 lbs |
| Evaporator Weight | 218 lbs |
| Panel Weight | 1,517 lbs |
| Door | 36″, heated frame, diamond-tread kick plates |
| Door Hardware | Kason hinges, closer and lock handle with inside release |
| Lighting | Digital LED plus 48″ ceiling-mount LED |
| Recommended Ceiling Height | 11′ |
Description
Step up to the Atosa AWC0810-TF-IL/IR when a kitchen needs a bigger room of cold storage: an 8′ x 10′ walk-in cooler with a white interior, a 36″ door and a quiet top-mount refrigeration system. It is designed for busy restaurants, grocers and institutional kitchens that buy in bulk and store a wide mix of product at 35°F to 38°F.
Key features
- White exterior and interior – a bright, clean look that is easy to wipe down.
- Foamed-in-place 4″ panels with cam locks – R-29 insulation, and panels that lock together on site.
- Top-mount drop-in refrigeration – R448A refrigerant and a low noise level.
- Holds 35°F to 38°F – the right range for produce, dairy and beverages.
- 36″ door with heated frame – diamond-tread kick plates for a door that takes daily traffic.
- Kason hardware – three spring-loaded hinges, a closer, and a lockable handle with inside safety release.
- Interior ramp and reinforced floor – both standard, so carts and dollies roll in.
- Digital LED light plus a 48″ ceiling-mount LED – bright, even lighting over the shelves.
How the AWC0810-TF-IL/IR fits your kitchen
The AWC0810-TF-IL/IR is a 96″ x 120″ box, 117″ high with the condenser in place, with room for racking on both sides of a central aisle. Power is 208-240 V single phase at 12 A on a 30 A breaker. Panels weigh 1,517 lb, the condensing unit 216 lb and the evaporator 218 lb, so plan delivery access and floor strength early. Atosa recommends an 11′ ceiling, a level floor with a vapor barrier, and 2″ of clearance around the panels.
Other sizes in this series
- AWC0608-TF-IL/IR – 6′ x 8′ (72″ x 96″), the smallest size.
- AWC0808-TF-IL/IR – 8′ x 8′ (96″ x 96″), a mid-size box.
- AWC1010-TF-IL/IR – 10′ x 10′ (120″ x 120″), listed on the same Atosa spec sheet.
- AWC1012-TF-IL/IR – 10′ x 12′ (120″ x 144″), with a 3 HP system and 40 A breaker.
Why buy from Babak Food Equipment?
- Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Does the Atosa AWC0810-TF-IL/IR need three-phase power?
No. Atosa lists 208-240 V, 60 Hz, single phase at 12 A for the AWC0810-TF-IL/IR, with a 30 A breaker and a 1.5 HP refrigeration system. Always have an electrician verify the supply on site.
Does the AWC0810-TF-IL/IR need a special floor?
The manual stresses a firm, level and smooth base, with a vapor barrier over the surface before the floor panels go down. The cooler has a reinforced floor and an interior ramp as standard. Plan for the 1,517 lb of panels as well.
Where can I find the AWC0810-TF-IL/IR spec sheet?
The official Atosa spec sheet and installation manual are in the download section below, with exterior dimensions, panel and equipment weights, voltage and breaker details for each AWC size. Our team is happy to help you read it.
How tall is the AWC0810-TF-IL/IR with the refrigeration installed?
Atosa lists 117″ overall height with the top-mounted condensing unit, which is about 10′ above a 7’6″ box. The recommended ceiling height is 11′, so check the room before ordering any walk-in cooler.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
