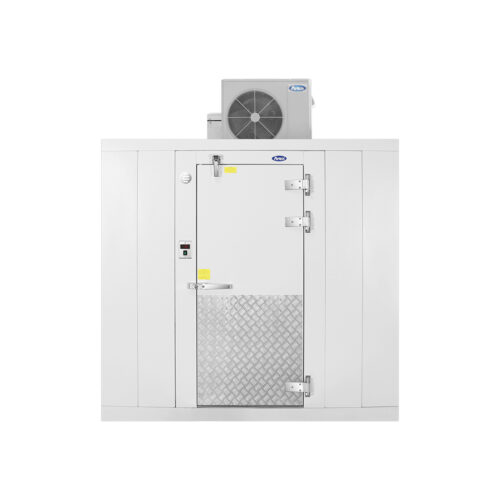

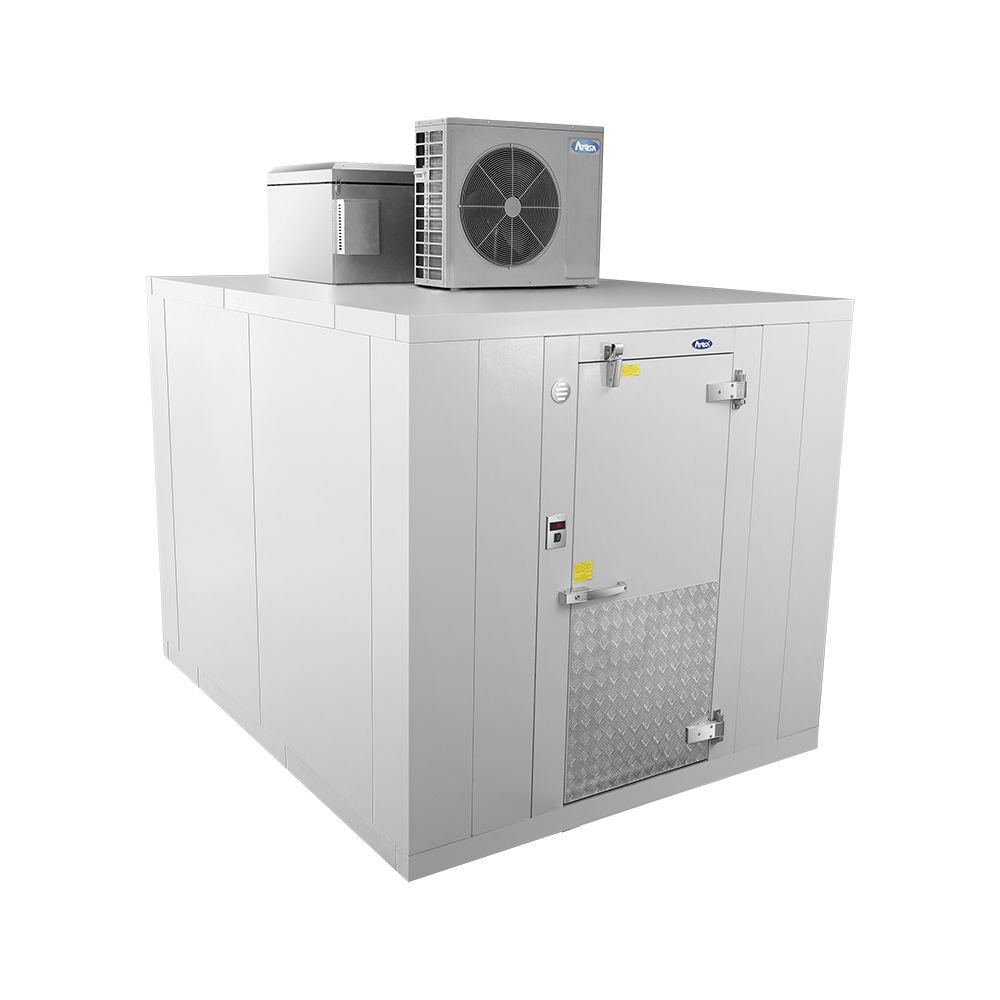

Atosa AWC0808-TF-IL/IR 8′ x 8′ Walk-in Cooler with Top-Mount Refrigeration
Exclusive Price :
Need Help :
Specs
| Brand | Atosa |
|---|---|
| Model | AWC0808-TF-IL/IR |
| Width | 96″ |
| Nominal Width | 8′ |
| Nominal Depth | 8′ |
| Voltage | 208-240 V |
| Hertz | 60 Hz |
| Phase | Single Phase |
| Amperage | 12 A |
| HP | 1.5 HP |
| Refrigerant Type | R448A |
| Temperature Range | 35°F to 38°F |
| Insulated | Foamed-in-place 4″ panels, R-29 |
| Color | White exterior and interior |
| Number of Doors | 1 |
| Refrigeration Type | Top-mount drop-in |
| Installation Type | Indoor |
| Depth | 96″ |
| Height | 117″ (overall, with condenser installed) |
| Box Height | 7’6″ |
| Breaker | 30 A |
| Condensing Unit Weight | 216 lbs |
| Evaporator Weight | 218 lbs |
| Panel Weight | 1,318 lbs |
| Door | 36″, heated frame, diamond-tread kick plates |
| Door Hardware | Kason hinges, closer and lock handle with inside release |
| Lighting | Digital LED plus 48″ ceiling-mount LED |
| Recommended Ceiling Height | 11′ |
Description
The Atosa AWC0808-TF-IL/IR is an 8′ x 8′ walk-in cooler for restaurants and catering kitchens that have outgrown their reach-ins. Foamed-in-place 4″ panels lock together with cam locks, a drop-in refrigeration system sits on the roof, and the box holds 35°F to 38°F for produce, dairy, drinks and bulk prep, behind a 36″ door. It is a practical size between the 6′ x 8′ and 8′ x 10′ models.
Key features
- White exterior and interior – a bright, clean look that is easy to wipe down.
- Foamed-in-place 4″ panels with cam locks – R-29 insulation, and panels that lock together on site.
- Top-mount drop-in refrigeration – R448A refrigerant and a low noise level.
- Holds 35°F to 38°F – the right range for produce, dairy and beverages.
- 36″ door with heated frame – diamond-tread kick plates for a door that takes daily traffic.
- Kason hardware – three spring-loaded hinges, a closer, and a lockable handle with inside safety release.
- Interior ramp and reinforced floor – both standard, so carts and dollies roll in.
- Digital LED light plus a 48″ ceiling-mount LED – bright, even lighting over the shelves.
How the AWC0808-TF-IL/IR fits your kitchen
The AWC0808-TF-IL/IR is a 96″ x 96″ box, 117″ high with the condensing unit installed, for kitchens that store more than a few shelves of product. It uses 208-240 V single phase, 12 A and a 30 A breaker, and weighs 1,318 lb in panels plus 216 lb for the condensing unit and 218 lb for the evaporator. Atosa recommends an 11′ ceiling, a level floor, 2″ of clearance around the panels and an indoor, climate-controlled room.
Other sizes in this series
- AWC0608-TF-IL/IR – 6′ x 8′ (72″ x 96″), the smallest size.
- AWC0810-TF-IL/IR – 8′ x 10′ (96″ x 120″), more room for racking.
- AWC1010-TF-IL/IR – 10′ x 10′ (120″ x 120″), listed on the same Atosa spec sheet.
- AWC1012-TF-IL/IR – 10′ x 12′ (120″ x 144″), with a 3 HP system and 40 A breaker.
Why buy from Babak Food Equipment?
- Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What power does the Atosa AWC0808-TF-IL/IR require?
Atosa lists 208-240 V, 60 Hz, single phase, a rated current of 12 A and a 30 A breaker for the 1.5 HP refrigeration system. Have a licensed electrician run the circuit to local code.
How should I maintain the AWC0808-TF-IL/IR?
After assembly, remove protective film, clear the floor and ceiling of tools and debris, and test the door, hinges and lock. Then check gaskets and hardware, replace worn ramp strips, and keep the floor dry.
Where can I find the AWC0808-TF-IL/IR spec sheet?
The official Atosa spec sheet and walk-in installation manual are in the download section below, so you can check dimensions, weights, voltage and breaker size for the AWC series before you order.
How is the AWC0808-TF-IL/IR different from the AWC0810-TF-IL/IR?
Both share 12 A, a 30 A breaker and the same 4″ panel construction. The AWC0808-TF-IL/IR is 96″ x 96″ with 1,318 lb of panels, while the AWC0810-TF-IL/IR is 96″ x 120″ with 1,517 lb of panels and more floor area.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
