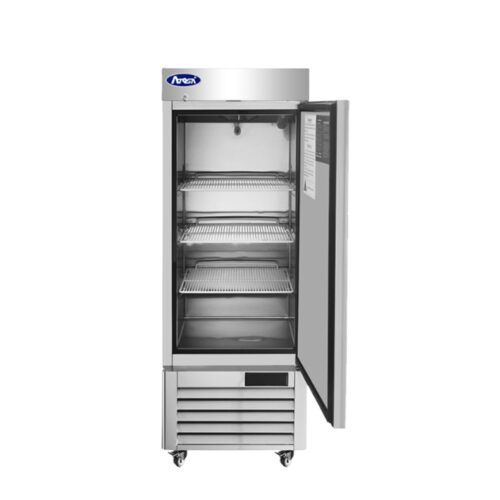

Atosa MBF8520GR 24″ Low Height Bottom Mount 1-Door Reach-In Freezer
Exclusive Price :
Original price was: $3,961.00.$2,728.00Current price is: $2,728.00.
Need Help :
Specs
| Weight | 187 lbs |
|---|---|
| Brand | Atosa |
| Number of Doors | 1 |
| Capacity | 8.3 cu ft |
| Number of Shelves | 3 |
| Caster Size | 2″ |
| Refrigerant Type | R290 |
| Compressor Location | Bottom mount |
| Model | MBF8520GR |
| Width | 24-1/4″ |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | Single Phase |
| Amperage | 6.3 A |
| Horsepower - Freezer | 1/2 HP |
| Exterior Material | Stainless steel (exterior and interior) |
| Control | Electronic temperature controller |
| Temperature Range | -8°F to 0°F |
| Casters | Pre-installed casters |
| Gross Weight (lbs) | 220 lbs |
| Depth | 24″ |
| Height | 63-1/4″ |
| Interior Lighting | LED |
| Door Lock | Standard |
| Door Gaskets | Magnetic |
| Door Handles | Recessed |
| Airflow | Down duct refrigeration |
| Shelf Style | Epoxy |
| Replacement Shelf Part # | W0402316 |
Description
Low ceilings, mezzanines and under-bar nooks call for a shorter freezer, and the Atosa MBF8520GR answers with a 63-1/4″ tall, one-door bottom mount reach-in unit. It stores 8.3 cu ft across three shelves at -8°F to 0°F, in a 24-1/4″ wide stainless steel cabinet. It is a smart choice for cafés, small restaurants and bars that want upright freezer storage in a compact footprint.
Key features
- Low 63-1/4″ height – fits where a full-height reach-in will not.
- Holds -8°F to 0°F – the range Atosa recommends for freezer storage.
- Down duct refrigeration – spreads cold air evenly through the cabinet.
- Stainless steel inside and out – wipes clean and stands up to busy kitchens.
- Electronic temperature controller – easy to set and check.
- Magnetic gaskets and door lock – a positive seal, with the stock secured.
- LED interior light and recessed handles – clear view inside, nothing to snag.
- R290 refrigerant – an environmentally friendly refrigerant.
- Pre-installed 2″ casters – roll the unit out for cleaning.
How the MBF8520GR fits your kitchen
Use the MBF8520GR where a full-height 83″ freezer is impractical: a low-ceiling prep room, a bar back area or a small café kitchen. The cabinet is 24-1/4″ wide, 24″ deep and 63-1/4″ high, and weighs just 187 lb. It draws 6.3 A on a standard 115 V supply. Keep the area around the condenser open, and site it away from fryers, ovens and sunny windows so the compressor is not working against extra heat.
Other sizes in this series
- MBF8531GR – 25-5/8″ wide, one door, 12.57 cu ft
- MBF8501GR – 27″ wide, one door, 19.1 cu ft
- MBF8502GR – 39-1/2″ wide, two doors, 28.5 cu ft
Why buy from Babak Food Equipment?
- Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What power does the Atosa MBF8520GR need?
The MBF8520GR runs on 115 V, 60 Hz, single phase, drawing 6.3 A with a 1/2 HP compressor. Atosa asks for a qualified installer, a matching thermomagnetic breaker and a supply within 10% of rated voltage. Keep the condenser area clear.
How should I care for the MBF8520GR?
Unplug the unit before any cleaning. Wipe the stainless surfaces with a soft cloth and a food-safe detergent at least monthly, and avoid abrasives. Clear dust from the condenser with a dry brush or vacuum so the compressor gets fresh air.
Where can I find the MBF8520GR spec sheet?
The official Atosa spec sheet for the MBF8520GR is in the download section below, along with the manual and parts breakdown. It lists dimensions, capacity, electrical data and shelf part numbers so you can check the fit before you order.
How does the MBF8520GR differ from the MBF8531GR?
The MBF8520GR is the low-height model: 24-1/4″ wide, 63-1/4″ tall and 8.3 cu ft on 2″ casters. The MBF8531GR is 25-5/8″ wide, 76-3/8″ tall and 12.57 cu ft on 4″ casters, for kitchens with more headroom.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
