Middleby Marshall PS570 70″ Gas Conveyor Oven

Description

The Middleby Marshall PS570G (PS570G-1, single oven) is a high-volume, direct gas-fired conveyor oven for pizzerias, chains and institutional kitchens. Like every PS570, it uses patented vertical columns of hot air that strip away the cool air layer around the food, so it bakes faster and at lower temperatures without burning – pizza, seafood, bagels, sandwiches and ethnic dishes come out the same every time.

Key features

• 70″ (1778 mm) cooking chamber with a 32″ (813 mm) wide, 106″ long conveyor belt – 15.5 sq ft of baking area
• Patented Jet Sweep impingement delivers constant heat to the whole chamber
• Energy Management System (EMS) for efficient heat transfer; the insulated top and front stay cool to the touch
• Microprocessor-controlled bake time and conveyor speed, 1 to 25 minutes, at 300–600°F
• Adjustable jet fingers and a front-loading window with cool handle, so products with different bake times cook consistently
• Reversible conveyor belt and stainless steel front, sides and top
• Drip trays, crumb trays, end panels, air fingers and conveyor belt all remove for cleaning
• Stackable up to four high · for installation under a ventilation hood

Options

• Split belt – two 15″ (381 mm) belts with individually adjustable speeds
• Hearth belt – single or split

Ideal for

High-volume pizzerias, pizza chains, stadiums, event venues, universities and other institutional kitchens.

Why buy from Babak Food Equipment?

• 20+ years in business and a 4.9★ Google rating from 380+ reviews.
• Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
• Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

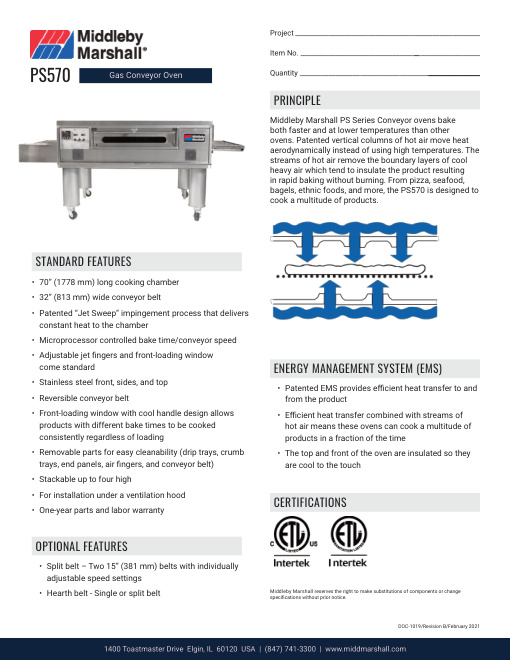

Where can I find the Middleby Marshall PS570 spec sheet?
The official Middleby Marshall spec sheet is in the download section below. It lists single to quad-stack dimensions, gas and electrical data and wall clearances.

What gas and power does the PS570G need?
Each oven cavity is rated at 170,000 BTU on natural gas or propane. The blowers and controls run on 208–240 V, 1 phase, 12 A, with a 6′ cord and NEMA L6-20P plug. Our team can check your gas line and hood before you order.

How many PS570 ovens can be stacked?
Up to four. A double stack gives a 140″ heating zone and 31 sq ft of baking area, and a quad stack gives 280″ and 62 sq ft.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
