Scotsman C0522MA-5 Prodigy Series 22″ Air Cooled Medium Cube Ice Machine / Storage Bin – 475 lb.

Best Price Guarantee in Canada

REQUEST A QUOTE

  • This field is for validation purposes and should be left unchanged.

SKU: C0522MA-5 Category:
Need Help :

Specs

Weight300 lbs
Brand
ModelC0522MA-1 with B322S bin
Manufacturer CodeC0522MA-5
Product LineProdigy Plus®
Ice TypeMedium cube, 7/8″ × 7/8″ × 7/8″
Output475 lb (216 kg) / 24 h
Capacity370 lb (168 kg) bin application capacity
Condenser TypeAir-Cooled
Voltage115 V
Hertz60 Hertz
Phase1 Phase
Amps13.5 A min. circuit ampacity, 15 A max fuse
Power Usage5.94 kWh / 100 lb
Water Usage18.0 gal / 100 lb (potable)
Refrigerant TypeR-404A
Installation TypeModular head on bin
ConstructionStainless steel bin
Width22 Inches
Shipping WeightHead 160 lb (73 kg) · bin 140 lb (64 kg)
Depth24 Inches (head) · 34 Inches (bin)
Height23 Inches (head) · 44 Inches (bin, plus 6″ legs)
Storage BinB322S, stainless steel
AHRI Bin Capacity290 lb (132 kg)
Heat Rejection7,900 BTU/h
Production at 90°F / 70°F340 lb (154 kg) / 24 h
Operating Air Temperature50–100°F (10–38°C)
Operating Water Temperature40–100°F (4.4–38°C)
Water Pressure20–80 psig (1.4–5.5 bar)

Description

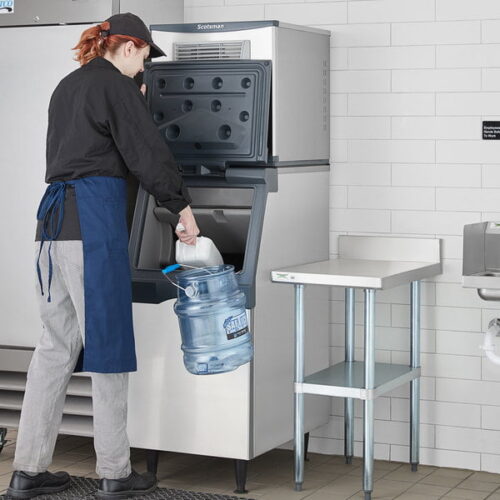

The Scotsman C0522MA Prodigy Plus® cuber packs high output into a narrow 22″ footprint. The air-cooled head makes up to 475 lb of medium cube ice a day and sits on a B322S stainless steel bin that stores about 370 lb. If you need close to 500 lb of ice but do not have room for a 30″ machine, the C0522MA with bin is one of the most space-efficient choices.

Key features

  • Up to 475 lb / 24 h (70°F air / 50°F water); about 340 lb at 90°F / 70°F
  • 22″ wide head (22″ × 24″ × 23″) – high output where width is limited
  • B322S bin, stainless steel, 22″ × 34″ × 44″ (add 6″ for legs)
  • Medium cube (7/8″ × 7/8″ × 7/8″)
  • AutoAlert™ indicator lights show status, cleaning and service needs at a glance
  • One-touch cleaning and a front-located, removable air filter (air-cooled units)
  • Patented WaterSense purge control reduces scale build-up; patented Harvest Assist moves ice to the bin efficiently
  • Also fits the HD22 iceValet® hotel dispenser without an adapter

Ideal for

Restaurants, bars, hotels and convenience stores that need high ice output in a narrow space.

Why buy from Babak Food Equipment?

  • 20+ years in business and a 4.9★ Google rating from 380+ reviews.
  • Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
  • Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

What is the difference between the C0522MA-1 and C0522MA-1E?
Both are the C0522 Prodigy Plus head; the letter marks a later production series. Ask our team which series is offered and we will confirm the specs.

How much ice does the bin hold?
Scotsman lists the B322S bin at 370 lb application capacity with the C0522 (290 lb AHRI-certified).

Where is the Scotsman C0522 spec sheet?
The official C0522 spec sheet with electrical, water and clearance details is in the download section below.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
