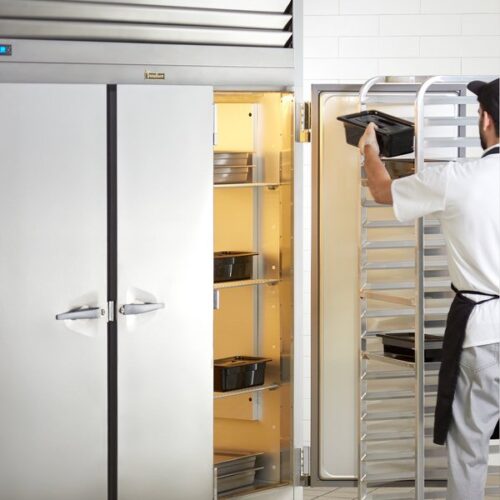

Traulsen G30010 G Series 3-Section Solid Door Reach-In Refrigerator, Full-Height Doors, Left/Right/Right, 115V
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 610 lbs |
|---|---|
| Brand | Traulsen |
| Product Line | G Series (Dealer’s Choice) |
| Refrigeration Type | Self-contained, top-mounted |
| Material | Stainless Steel |
| Exterior Finish | Stainless steel front and doors |
| Liner Material | Anodized aluminum |
| Voltage | 115 V |
| Phase | Single Phase |
| Hertz | 60 Hz |
| NEMA | NEMA 5-15P |
| Cord Length | 9 ft |
| Certificate | UL, CSA, NSF |
| Casters | Four 6″ locking casters |
| Control | Microprocessor, LED temperature display |
| Compressor Style | Hermetic, air-cooled |
| Door Style | Solid, full height |
| Installation Type | Reach-in |
| Refrigerant style | R-450A |
| Temperature Range | 34-38°F |
| Width | 76 5/16 Inches |
| Number of Doors | 3 |
| Number of Shelves | 9 |
| Amps | 8.4 A |
| BTU | 4,610 BTU/hr |
| HP | 1/2 HP |
| Hinge Location | Left / Right / Right |
| High or Low Temp | Medium temperature (refrigerator) |
| Model | G30010 |
| Depth | 35 Inches overall, 32 Inches over body |
| Height | 83 7/16 Inches on 6″ casters |
| Depth Door Open 90° | 57 5/8 Inches |
| Clear Door Opening | 21 1/8 W x 57 5/8 H Inches |
| Shelf Load Limit | 225 lb per shelf |
| Required Clearance | 12 Inches above |
| Insulation | 2″ high density polyurethane, non-CFC |
| Door Stay-Open Angle | 120° |
| Net Capacity | 69.35 cu ft (full-height doors) |
| Shelf Area | 51.9 sq ft |
| Refrigerant Charge | 24 oz |
| Max Daily Energy Consumption | 3.38 kWh/day |
Description
Big kitchens that outgrow a two-door reach-in step up to the Traulsen G30010. This three-section G Series refrigerator has three full-height solid doors hinged left, right and right, 69.35 cu ft of net capacity and nine shelves, all on a 115 V plug at 8.4 A.
Key features
- Full-height solid doors with locks, self-closing cam-lift hinges and a stay-open feature at 120°
- Microprocessor control with a LED temperature display in Fahrenheit or Celsius; standard operating temperature 34-38°F
- Evaporator coil sits outside the food zone, giving more usable space, and a Load-Sure guard protects against improper loading
- Stainless steel front and doors with anodized aluminum sides, interior and door liners
- Top-mounted, balanced self-contained system with a front-facing condenser, using environmentally friendly, non-flammable R-450A
- Three epoxy coated wire shelves per section, installed at the factory, 225 lb recommended load per shelf
- Automatic LED interior lighting, anti-condensate heaters behind each door opening and 2″ non-CFC polyurethane insulation
- Four 6″ locking casters and a 9′ cord and plug attached
Options
- Tray slides for 18″ x 26″ sheet pans, 12″ x 20″ food pans or 14″ x 18″ sheet pans, additional shelves, 6″ legs, lower height casters and remote applications
Ideal for
Full-service kitchens and commissaries that need a large, three-section reach-in refrigerator for bulk prep and storage.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
How wide is the Traulsen G30010?
The sheet gives an overall width of 76 5/16″. Our site name says 77″, which is a rounded figure, so use the sheet dimension for layout.
Is the Traulsen G30010 spec sheet available?
Yes. The official Traulsen G Series 3-section solid door reach-in refrigerator spec sheet is in the download section below. It lists dimensions, electrical and refrigeration data, standard features and the available options.
What do the numbers in the G30010 model mean?
On the sheet, G300 is the three-section refrigerator family and the last digits give the door height and hinging. The 3001x numbers are full-height door models, and G30010 is left/right/right.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
