Turbo Air TOM-36L-UFD-S-3SI-N 36″ Drop-In Open Display Case with Rear Sliding Glass Doors, 11.1 cu. ft.
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 499 lbs |
|---|---|
| Brand | Turbo Air |
| Voltage | 115 V |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 11.3 A |
| Horsepower | (2) 3/4 HP |
| NEMA | NEMA 5-20P |
| Refrigerant Type | R-290 (hydrocarbon) |
| Refrigeration Type | Self-contained |
| Condenser Type | Self-cleaning condenser |
| Display Case Type | Drop-in horizontal open display case, low profile |
| Number of Shelves | 2 shelves plus deck |
| Capacity | 11.1 cu. ft. |
| Certificate | cETLus |
| Cord Length | 9 7/8 ft |
| Width | 35 7/8 Inches |
| Interior Width | 32 3/8 Inches |
| Interior Depth | 23 1/2 Inches |
| Interior Height | 25 1/4 Inches |
| Construction | Stainless steel exterior and interior |
| Color | Stainless Steel |
| Model | TOM-36L-UFD-S-3SI-N |
| Depth | 33 3/4 Inches |
| Height | 52 1/2 Inches (excludes 5/8″ bolt height) |
| Night Cover | Included |
| Lighting | LED interior lighting |
| Display Glass | Tempered glass front shield and side walls |
| Rear Access | Sliding glass doors |
| Installation Note | Drop-in type; bottom portion is not visible after installation |
| Shelf Size | 31 5/8″ x 10″ and 31 5/8″ x 14″ |
| Controller | Digital electronic thermostat with defrost control |
| Thermometer | Solar powered digital thermometer |
| Airflow | Front air intake, rear air discharge |
| Insulation | Foamed polyurethane, high-density cell (CFC-free) |
| Built-in Clearance | 4″ rear, 5″ top |
| Bolt Height Adjustment | Up to 2 3/4″ |
Description
Tall, wide and fitted with rear sliding glass doors, the Turbo Air TOM-36L-UFD-S-3SI-N is the biggest stainless drop-in this group. Two glass shelves and a deck provide 11.1 cu. ft. of cold display, and staff can reach product from behind the counter while customers browse from the open front.
Key features
- 11.1 cu. ft. drop-in horizontal open display with two shelves plus a deck
- Tempered glass front shield and side walls for full product visibility
- Rear sliding glass doors for access from the back of the case
- Includes a night cover to protect product after hours
- Patented self-cleaning condenser that brushes away dust automatically each day
- Digital electronic thermostat with defrost control and a solar powered digital thermometer
- LED interior lighting, with front air intake and rear air discharge and a standard back-guard
- R-290 hydrocarbon refrigerant, (2) 3/4 HP, in a self-contained plug-in system
- Drop-in type with stainless steel back wall and deck pan; the bottom portion is not visible after installation
Options
- Casters and 6″ leveling seismic legs; bolt height adjusts up to 2-3/4″
Ideal for
Delis, cafés, grocery and convenience stores, bakeries and restaurants that want an open, grab-and-go display for sandwiches, salads, desserts and beverages.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, space and clearance requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What power does the TOM-36L-UFD-S-3SI-N need?
It runs on 115 V, 60 Hz, single phase, drawing 11.3 A with (2) 3/4 HP refrigeration. The 9-7/8 ft cord ends in a NEMA 5-20P plug, so use a suitable 20 A outlet.

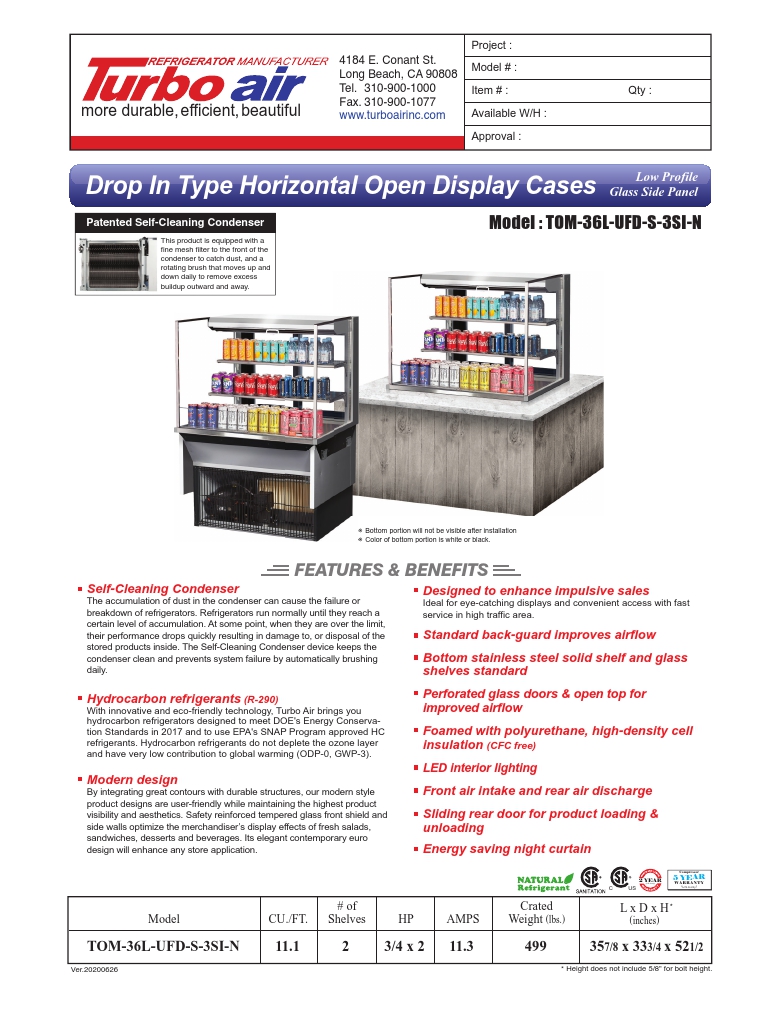

Where is the TOM-36L-UFD-S-3SI-N spec sheet?
The current official Turbo Air cut sheet for the TOM-36L-UFD-S-3SI-N is in the download section below. It shows dimensions, electrical data, shelf sizes and the optional accessory list.
What does drop-in mean for the TOM-36L-UFD-S-3SI-N?
It is a drop-in type open case, and the bottom portion is not visible after installation. When built in, the sheet calls for 4″ clearance at the rear and 5″ at the top.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
