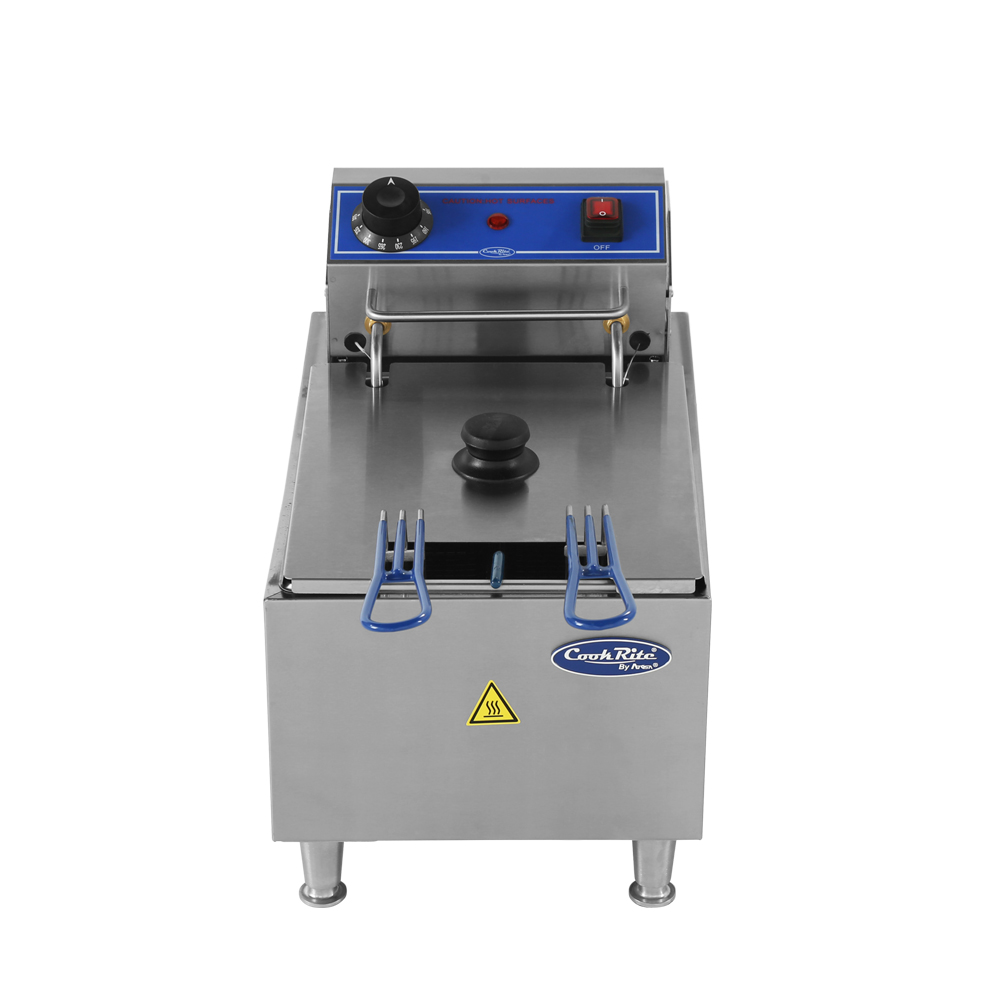

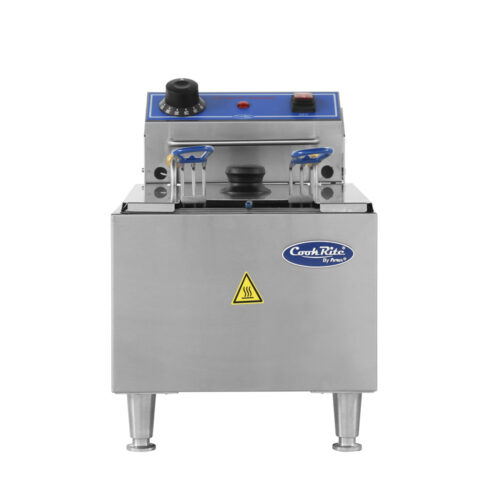

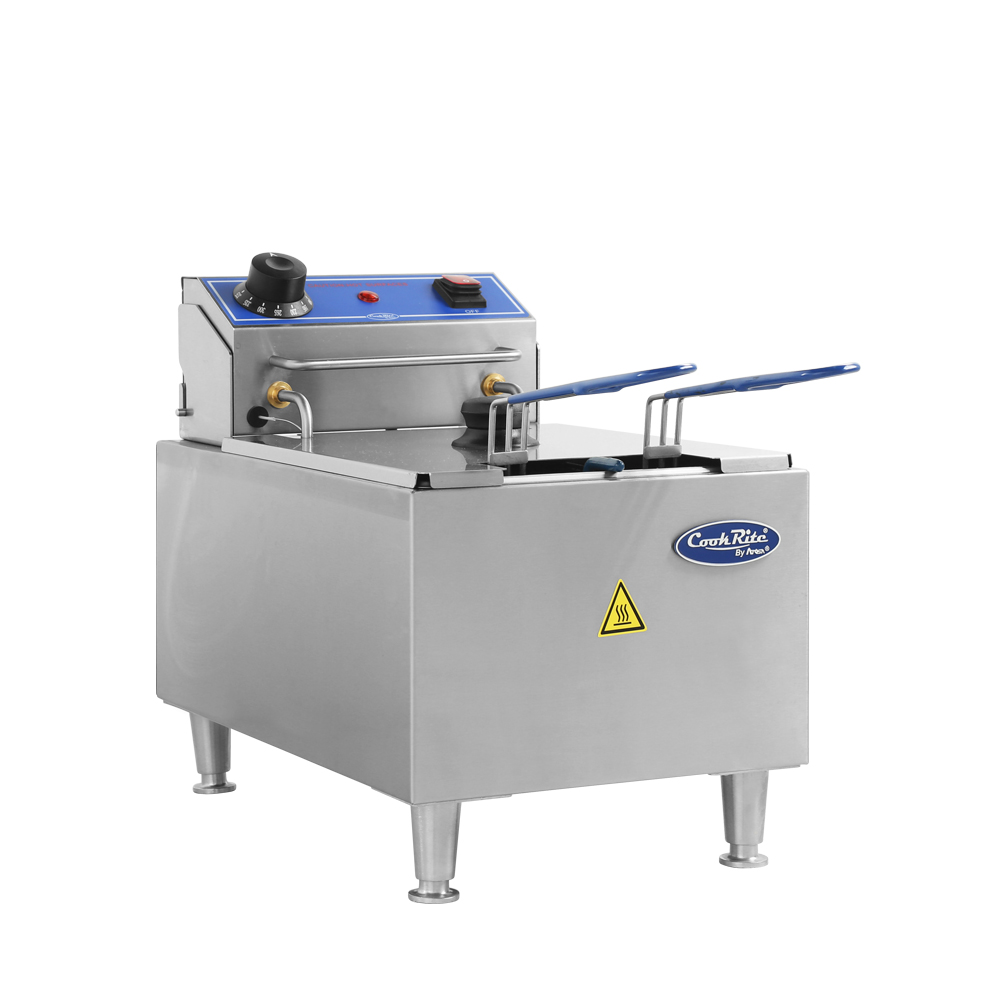

Atosa ACEF-10 Countertop Electric Fryer, 10 lb Oil Capacity, 120 V
Exclusive Price :​
Need Help :
Specs
| Weight | 16.9 lbs |
|---|---|
| Brand | Atosa |
| Model | ACEF-10 |
| Width | 11-1/4″ |
| Power Type | Electric |
| Installation Type | Countertop |
| Capacity | 10 lb oil capacity |
| Number of Fry Pots | 1 |
| Number of Fry Baskets | 2 |
| Voltage | 120 V |
| Hertz | 60 Hz |
| Phase | Single Phase |
| KW | 1.7 kW |
| Amps | 14.2 A |
| Plug | NEMA 5-20P |
| Maximum Temperature | 375°F |
| minimum temperature | 70°F |
| Element Style | Swing-up immersion elements |
| Exterior Material | Stainless Steel |
| Gross Weight (lbs) | 20.8 lbs |
| Depth | 18-1/2″ |
| Height | 15-3/8″ |
| Basket Dimensions (W x D x H) | 9″ x 4-5/16″ x 4-1/8″ |
| Basket Handles | Nickel-plated baskets with cool-to-touch insulated handles |
| High-Limit Control | Manual reset |
| Basket Hooks | Built in |
Description
Add a fryer to your menu without a gas line. The Atosa ACEF-10 is a compact countertop electric fryer that holds 10 lb of oil and comes with two baskets. At only 11-1/4″ wide, and running on a 120 V outlet, it suits cafés, concession stands, bars and small restaurants that fry in small batches and want a simple, plug-in fryer.
Key features
- 10 lb oil capacity, two baskets – fry two small batches at the same time.
- Runs on 120 V – plugs into a NEMA 5-20P outlet, so no special voltage is needed.
- All stainless steel construction – tough and easy to wipe down.
- 70°F to 375°F thermostat – set the oil temperature for the product you fry.
- High temperature control with manual reset – a built-in safety control for peace of mind.
- Nickel-plated baskets – cool-to-touch insulated handles make lifting safer.
- Built-in basket hooks – drain the baskets over the oil.
- Attached power cord and plug – nothing extra to buy for hookup.
- Swing-up elements and removable control box – both are easy to remove and clean.
How the ACEF-10 fits your kitchen
The ACEF-10 is 11-1/4″ wide, 18-1/2″ deep and 15-3/8″ high, and weighs 16.9 lb. It draws 14.2 A at 120 V on a 5-20P plug, so use a 20-amp receptacle. The manual calls for a level surface that supports the fryer and oil, a well-ventilated area, and an open space away from overhead cabinets. The cord is attached, so there is nothing to hardwire. Check local requirements for cooking appliances in your kitchen.
Other sizes in this series
- ACEF-16 – 16 lb of oil, one basket, 208-240 V.
- ACEF-32 – two tanks and 32 lb of oil, 208-240 V, with dual cords.
Why buy from Babak Food Equipment?
- Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What power does the Atosa ACEF-10 need?
The ACEF-10 runs on 120 V, 60 Hz, single phase at 1.7 kW and 14.2 A, with an attached cord and a NEMA 5-20P plug. Use a properly rated outlet, and switch the power off before plugging in.
How do I clean the ACEF-10?
Unplug it and let the oil cool. Lift the heating element, drain the oil, and wash the basket with dishwashing detergent. The manual says the body, basket and pan can go in a dishwasher or soak, but must be fully dry before reassembly.
Where can I find the ACEF-10 spec sheet?
The official Atosa spec sheet, manual and parts breakdown for the ACEF-10 are in the download section below. They cover dimensions, basket size, electrical data, plug type, weights and the plan and side views.
How is the ACEF-10 different from the ACEF-16?
The ACEF-10 runs on 120 V, holds 10 lb of oil and has two baskets. The ACEF-16 runs on 208-240 V, holds 16 lb of oil and has one larger basket, and is 17-3/16″ high.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
