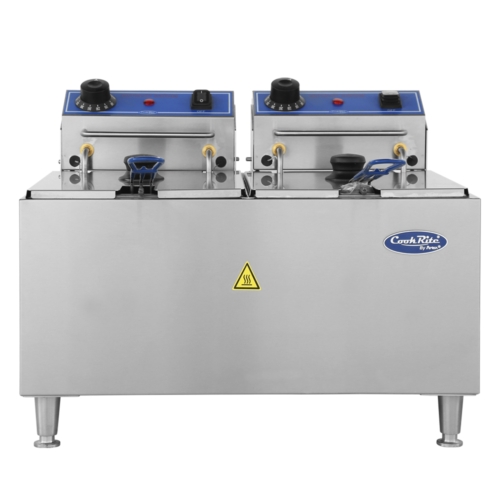

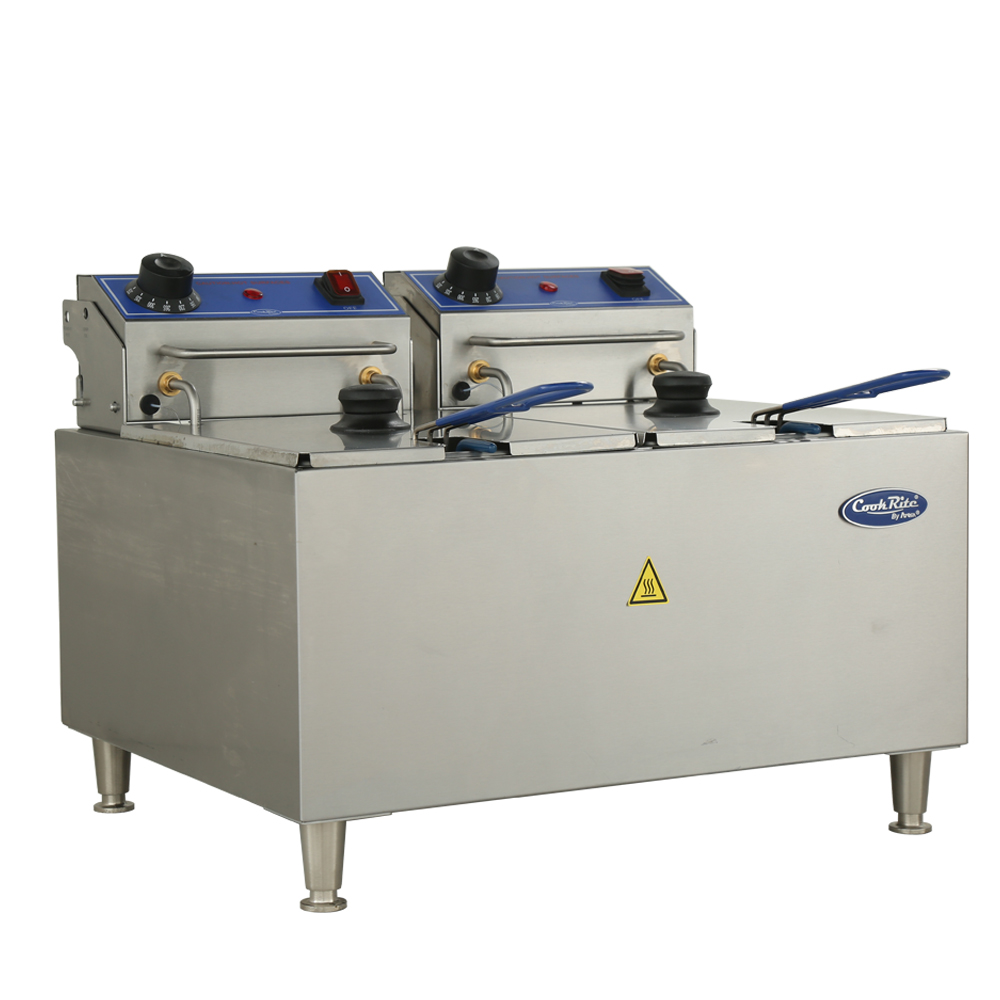

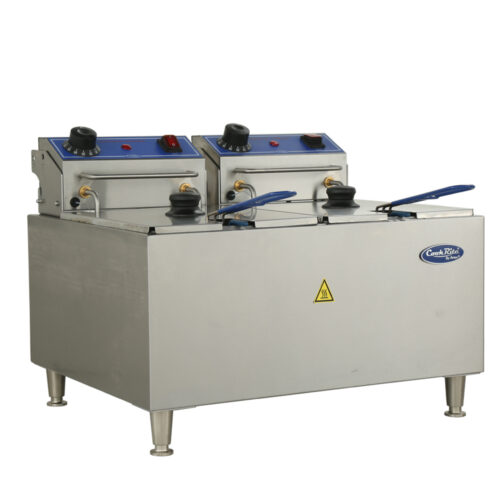

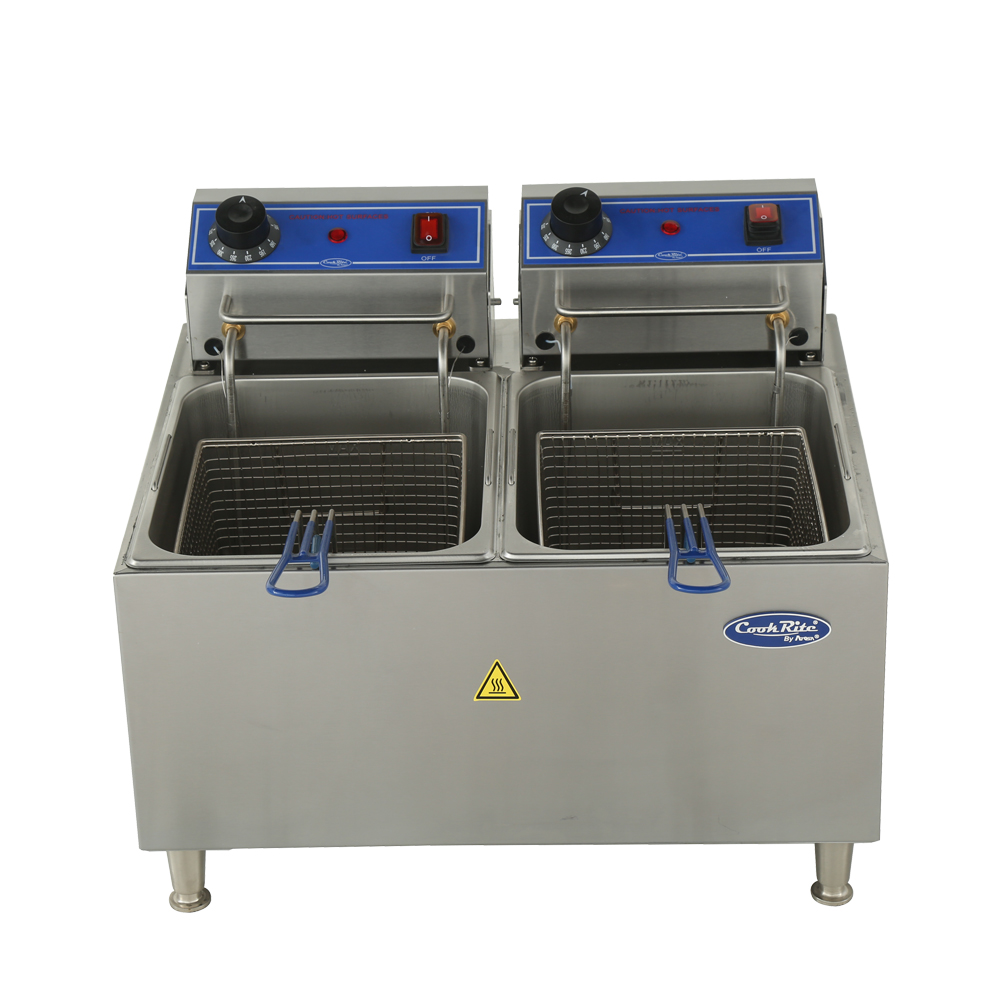

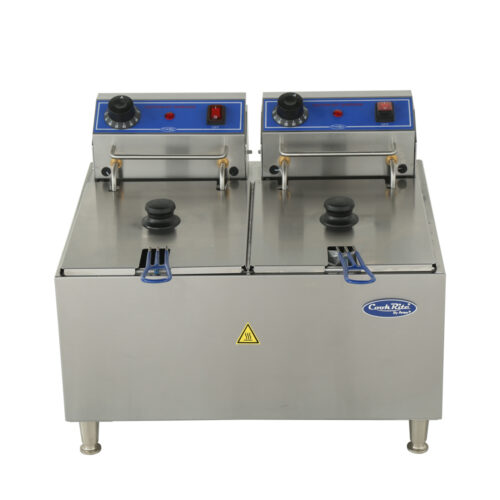

Atosa ACEF-32 Countertop Electric Fryer, Two Tanks, 32 lb Oil Capacity, 208-240 V
Exclusive Price :
Need Help :
Specs
| Weight | 31.7 lbs |
|---|---|
| Brand | Atosa |
| Model | ACEF-32 |
| Width | 21-11/16″ |
| Power Type | Electric |
| Installation Type | Countertop |
| Capacity | 32 lb oil capacity |
| Number of Fry Pots | 2 |
| Number of Fry Baskets | 2 |
| Voltage | 208~240 V |
| Hertz | 60 Hz |
| Phase | Single Phase |
| KW | (2) 2.9-3.8 kW |
| Amps | (2) 14-15.1 A |
| Plug | (2) 6-20P |
| Maximum Temperature | 375°F |
| minimum temperature | 70°F |
| Element Style | Swing-up immersion elements |
| Exterior Material | Stainless Steel |
| Gross Weight (lbs) | 36.9 lbs |
| Depth | 18-1/2″ |
| Height | 17-3/16″ |
| Basket Dimensions (W x D x H) | 8-7/16″ x 7-7/8″ x 5-7/8″ |
| Basket Handles | Nickel-plated baskets with cool-to-touch insulated handles |
| High-Limit Control | Manual reset |
| Basket Hooks | Built in |
Description
Two products, two oils, one countertop. The Atosa ACEF-32 is a double-tank electric fryer with two heating elements, two baskets and 32 lb of total oil capacity. It runs on 208-240 V, so it gives bars, cafés, concession stands and restaurants room to fry two products in separate oil on one compact countertop footprint, with no gas connection and two baskets ready to go.
Key features
- Two tanks, two elements – run two products or two oils at once.
- 32 lb total oil capacity – plenty of volume for a busy countertop station.
- Two baskets – nickel-plated with cool-to-touch insulated handles.
- 208-240 V electric – two 2.9-3.8 kW elements on dual 6-20P cords.
- All stainless steel construction – tough and easy to wipe down.
- 70°F to 375°F thermostat – set the oil temperature for the product you fry.
- High temperature control with manual reset – a built-in safety control for peace of mind.
- Built-in basket hooks – drain the baskets over the oil.
- Swing-up elements and removable control box – both are easy to remove and clean.
How the ACEF-32 fits your kitchen
The ACEF-32 is 21-11/16″ wide, 18-1/2″ deep and 17-3/16″ high, and weighs 31.7 lb. Each tank has its own cord and 6-20P plug, drawing 14-15.1 A, and the manual says to connect each plug to a receptacle on a separate branch circuit. Unplug both cords before moving or servicing. Install it on a level surface in a well-ventilated area, away from overhead cabinets. Both cords are attached, so there is nothing to hardwire.
Other sizes in this series
- ACEF-10 – 10 lb of oil, two baskets, 120 V.
- ACEF-16 – 16 lb of oil, one basket, 208-240 V, 11-1/4″ wide.
Why buy from Babak Food Equipment?
- Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What power does the Atosa ACEF-32 need?
The ACEF-32 needs 208-240 V, 60 Hz, single phase. It has two cords with 6-20P plugs, each drawing 14-15.1 A, and the manual says to plug each into a receptacle on a separate branch circuit.
How do I clean the ACEF-32?
Unplug both cords and let the oil cool. Lift the elements, drain the oil, and wash the baskets with dishwashing detergent. The manual says the body, baskets and pans can go in a dishwasher or soak, but must be fully dry before reassembly.
Where can I find the ACEF-32 spec sheet?
The official Atosa spec sheet, manual and parts breakdown for the ACEF-32 are in the download section below. They cover dimensions, basket size, electrical data, plug type, weights and the plan and side views.
How is the ACEF-32 different from the ACEF-16?
The ACEF-32 is 21-11/16″ wide with two tanks, two elements and 32 lb of oil, on two cords. The ACEF-16 is 11-1/4″ wide with a single 16 lb tank, one element and one cord.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
