Middleby Marshall PS536GS 36″ Gas Conveyor Oven
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 699 lbs |
|---|---|
| Brand | MIDDLEBY MARSHALL |
| Model | PS536GS |
| Manufacturer Code | PS536G |
| Product Line | PS Series |
| Power Type | Gas |
| Gas Type | Natural gas or propane |
| Total BTU | 75,000 BTU |
| Voltage | 208/240 V |
| Phase | 1 Phase |
| Hertz | 50/60 Hertz |
| Amps | 1.5 A |
| Plug | NEMA L6-20P, 6′ cord |
| Temperature Range | 300–600°F (149–315°C) |
| Conveyor Speed | 30 seconds – 11-3/4 minutes |
| Conveyor Length | 60 Inches (76″ optional) |
| Number of Decks | 1 (stackable up to 3) |
| Construction | Stainless steel front, sides, top and interior |
| Width | 60 Inches |
| Shipping Weight | 699 lb |
| Depth | 43.38 Inches |
| Height | 44.5 Inches |
| Cooking Chamber Length | 36″ (914 mm) |
| Belt Width | 18″ (457 mm) |
| Baking Area | 4.5 sq ft (0.42 m²) |
| Jet Finger Zones | 8″ (203 mm) |
| Natural Gas Supply Pressure | 6–12″ W.C. |
| Propane Supply Pressure | 11–14″ W.C. |
| Gas Hose | 3/4″ NPT × 48″ flexible hose included |
| Wall Clearance | 3″ rear, 1″ each conveyor end |
| Ship Cube | 75.1 ft³ |
Description
The Middleby Marshall PS536GS is a direct gas-fired conveyor oven sized for kiosks and express-style locations where a smaller oven is needed. Patented Jet Sweep impingement delivers constant heat to the 36″ chamber, and Middleby’s vertical columns of hot air bake pizza, sandwiches, bagels, seafood and ethnic foods faster and at lower temperatures than conventional ovens.
Key features
- 36″ (914 mm) cooking chamber with an 18″ (457 mm) wide, 60″ (1524 mm) long conveyor – 4.5 sq ft baking area
- Patented Jet Sweep impingement with customer-specific jet fingers that control heat in 8″ (203 mm) zones
- Impingement PLUS! low oven profile with dual air return
- Patented EMS Energy Management System reduces gas use; the oven stays cool to the touch
- Microprocessor-controlled bake time and conveyor speed, 30 seconds to 11-3/4 minutes at 300–600°F
- Stainless steel front, sides, top and interior, with a front-loading window and cool handle
- Reversible conveyor; crumb pans, end panels, air fingers, exit tray and belt remove for cleaning
- Stackable up to three high · for installation under a ventilation hood
Options
- Split belt – two 9″ (229 mm) belts with individually adjustable speeds
- 76″ (1930 mm) long conveyor
- Adjustable legs (replace casters)
- 4″ or 16″ exit tray
Ideal for
Kiosks, express pizzerias, sandwich shops, bars and food courts that need conveyor baking in a smaller footprint.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ

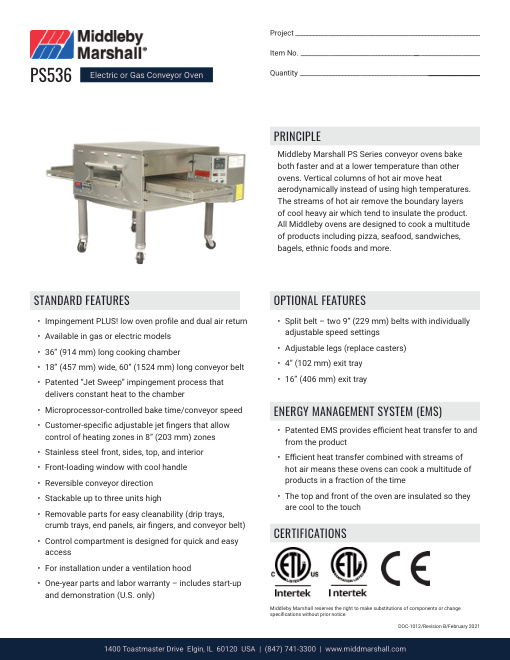

Where is the Middleby Marshall PS536 spec sheet?
The official PS536 spec sheet (gas and electric) is in the download section below, with dimensions, clearances and utility data.
What gas and power does the PS536GS need?
The burner is rated at 75,000 BTU on natural gas (6–12″ W.C. supply) or propane (11–14″ W.C.). The controls use 208/240 V, 1 phase, 1.5 A, with a 6′ cord and NEMA L6-20P plug.
Is a longer conveyor available?
Yes. A 76″ (1930 mm) conveyor is an option instead of the standard 60″, along with a split belt and different exit trays.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
