Vulcan GT150E-NAT 150-Gallon Natural Gas Steam Cooking Kettle, Fully Jacketed
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | Vulcan |
|---|---|
| Product Line | GS, GL and GT Series Gas Kettles |
| BTU | 135,000 BTU/hr |
| Voltage | 120 V |
| Phase | 1 Phase |
| KW | 0.3 kW |
| Amps | 3 A |
| Gas Inlet Size | 3/4″ NPT |
| Material | 316 series stainless steel liner |
| Kettle Jacket | Fully steam jacketed |
| Installation Type | Floor model on 2″ legs with adjustable feet |
| Control Type | Thermostat with electronic ignition |
| Certificate | CSA design certified, NSF/ANSI 4 classified, ASME code |
| Model | GT150E-NAT |
| Capacity | 150 gallons (568 L) |
| Gas Type | Natural Gas |
| Draw-off Valve | 2″ tapered plug type with strainer |
| Relief Valve | 15 PSI, plus vacuum relief valve |
| Safety Controls | Low water cut-off and pressure limit switch |
| Cover | Spring assist, with condensate ring |
| Clearance to Combustibles | Rear 2″, sides 0″ |
| Gas Supply Height | 6″ above finished floor |
| Brimful Capacity | 150 gal / 600 qt / 568 L |
| 4 oz Servings | 4,800 |
| Operating Gas Pressure | 8.0″ W.C. natural gas |
Description
The GT150E-NAT is a 150-gallon Vulcan gas steam cooking kettle, fully steam jacketed and fired on natural gas at 135,000 BTU/hr. A thermostat with electronic ignition holds the temperature, and the sloped liner bottom drains through a 2-inch plug type draw-off valve, which suits soups, sauces, stocks and large batch cooking. A graduated measuring rod and a faucet bracket come with the kettle.
Key features
- Fully steam jacketed stationary kettle for even heating, rated 135,000 BTU/hr on gas
- 316 series stainless steel liner with a dish-shaped bottom sloped to the front for smooth product flow
- Tapered 2-inch plug type draw-off valve with an opening strainer, plus a graduated measuring rod
- Spring assist hinged cover with condensate ring and a drop-down lift handle on a heavy duty pivot
- Thermostat with combination gas control valve and electronic ignition
- 15 PSI relief valve, vacuum relief valve, low water cut-off, pressure limit switch and pressure gauge
- 2-inch diameter stainless steel legs with adjustable flanged feet and a faucet bracket
Options
- 3-inch compression tangent draw-off valve with perforated strainer
- Security facility package
- Clean-up kit, 48-inch whip, heat deflector shield and pantry faucets or pot filler, sold separately
Ideal for
Hotels, hospitals, schools, commissaries and restaurant kitchens that cook soups, sauces and stews in large batches.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Is the Vulcan GT150E-NAT natural gas or propane?
The GT150E-NAT is the natural gas model. The sheet lists a regulator with each kettle, set to 8.0″ W.C. for this fuel, and the same 150-gallon kettle is also built for the other gas.
Is the Vulcan GT150E-NAT spec sheet available?

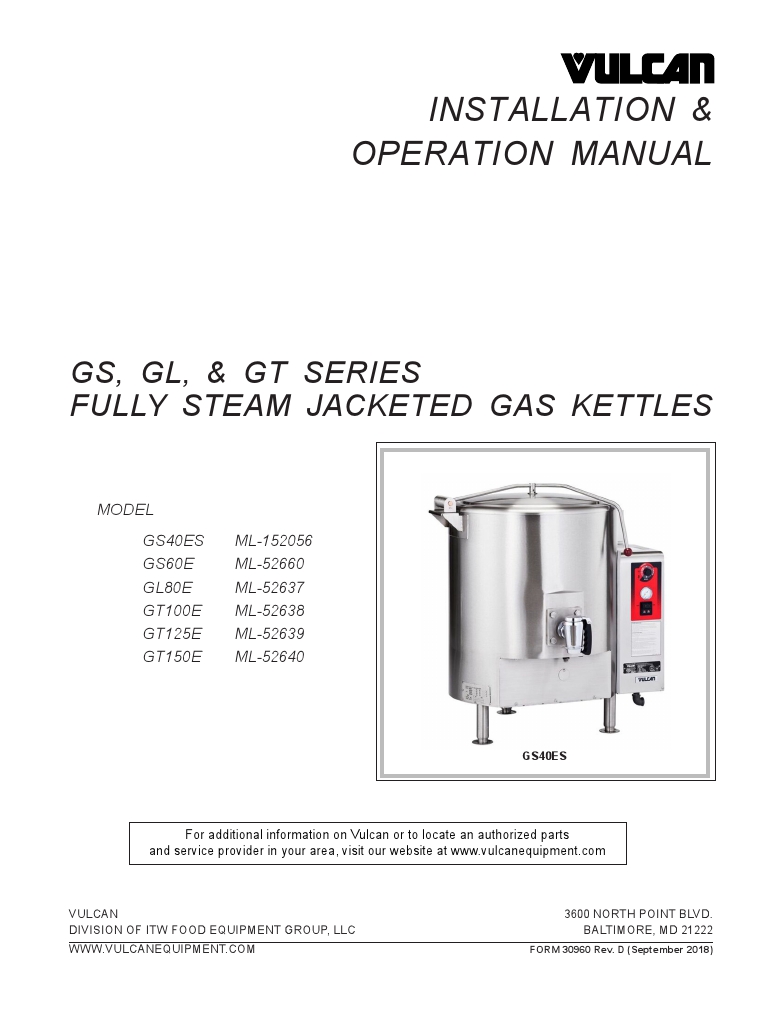

Yes. The official Vulcan GS, GL and GT series gas kettle spec sheet is in the download section below. It covers capacities, BTU input, dimensions, service connections and clearances.
What utilities does the Vulcan GT150E-NAT need?
It needs a 3/4″ NPT gas supply and a 120 V, 60 Hz, 1 phase connection at 0.3 kW (3 A) for the controls, plus a water faucet. The sheet requires 2″ rear clearance to combustibles.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
