Vulcan VG40-NAT Natural Gas 40 Gallon Manual Tilt Braising Pan / Tilt Skillet 120000 BTU
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | Vulcan |
|---|---|
| Model | VG40 |
| Manufacturer Code | VG40-NAT |
| Power Type | Gas |
| Gas Type | Natural Gas |
| BTU | 120,000 BTU/hr |
| Capacity | 40 gal. (152 L) |
| Temperature Range | 50–425°F |
| Control Type | Solid state |
| Lift Type | Manual (crank) |
| Gas Inlet Size | 3/4″ NPT |
| Voltage | 120 V |
| Phase | 1 Phase |
| Hertz | 60 Hertz |
| Amps | 9.0 |
| Construction | Stainless Steel |
| Certificate | CSA, NSF 4 (UL classified) |
| Installation Type | Floor |
| Width | 46 Inches |
| Depth | 35 1/2 Inches |
| Height | 40 1/2 Inches (on 12″ legs) |
| Pan Depth | 9 3/4 Inches |
| Cooking Surface | 39″ × 23″ |
| Portions | 1,280 × 4 oz |
| Burners | 4 × 30,000 BTU/hr |
| Ignition | Electronic |
| Tilt Shut-Off | Burners off at 5° tilt |
| Gas Pressure (Natural) | 7–10.5″ W.C. supply |
| Clearances (Combustible) | Rear 6″, sides 2″ |
| Base | Open base, 12″ legs with adjustable flanged feet |
Description

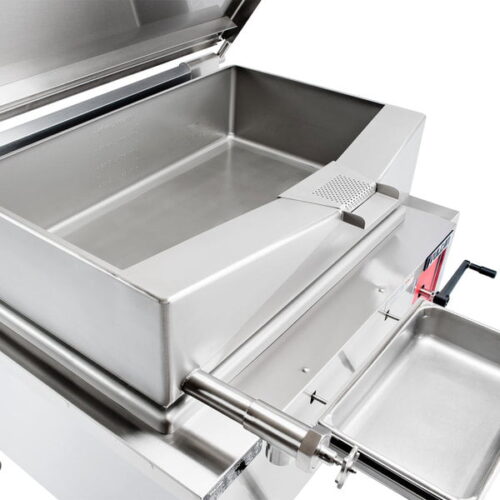

The Vulcan VG40 is a 40 gallon gas tilting braising pan (tilt skillet) on a 46″ wide open base. One pan browns, braises, sautés, simmers, steams and grills large batches, so banquet, school and institutional kitchens can replace several pots and griddles. This Vulcan VG40 natural gas model delivers 120,000 BTU/hr and Vulcan says it heats about 20% faster than standard models. A manual crank tilts the pan to empty it.
Key features
- 40 gallon / 152 litre capacity – about 1,280 four-ounce portions, with embossed gallon and litre markings
- 120,000 BTU/hr from one 30,000 BTU burner per 12″ of pan width, with electronic ignition
- Solid state temperature control adjustable from 50°F to 425°F; burners shut off when the pan is tilted 5°
- Manual anti-jam tilting mechanism with removable handle – empties completely in about 30 crank turns
- Stainless steel spring assist cover with cool-to-the-touch wrap-around handle, condensate lip and vented-cooking stop
- Front-hinged polished stainless steel pan with coved corners; stainless cooking surface bonded to a steel plate
- Full-width 4″ return flange with pouring lip, removable strainer and drop-away food receiving pan support
- Stainless steel front, back, sides and 12″ legs with adjustable flanged feet; watertight controls
Options
- Motor driven pan lift with removable manual crank handle
- 2″ draw-off valve with strainer (3 positions)
- Security package and second-year extended parts and labour coverage
- Casters, faucet bracket, pantry faucets, washdown hose and pot filler
- Steaming pan insert rack, drain waste pan, boiling basket and catch can
Ideal for
Banquet halls, hotels, schools, hospitals, correctional facilities and caterers that cook soups, sauces, braises and breakfast in volume.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ

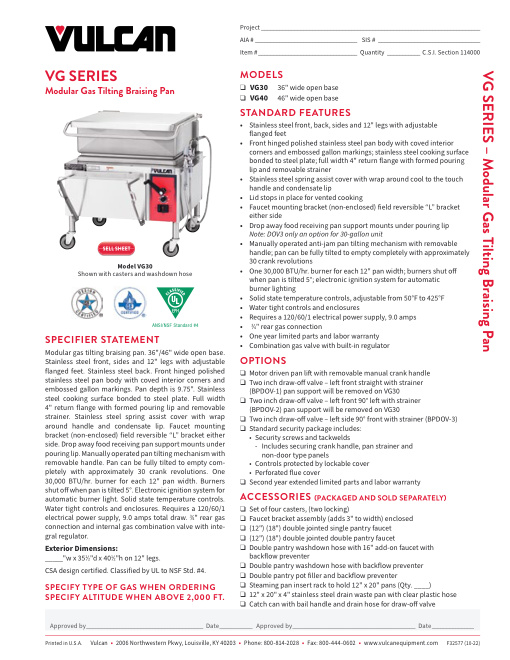

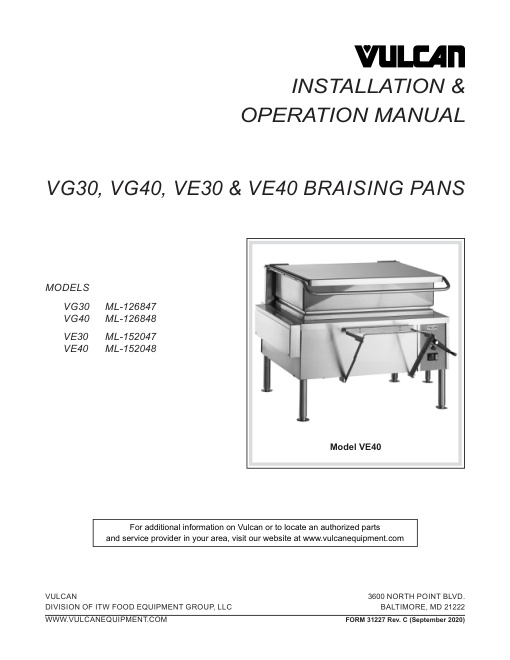

Where can I find the Vulcan VG40 spec sheet and manual?
The official Vulcan spec sheet and the installation and operation manual are in the download section below. Vulcan’s parts catalog and service manual are on vulcanequipment.com.
Where can I get Vulcan VG40 parts?
Vulcan publishes a parts catalog for the VG series. Our team can help you find the right part number and a Vulcan service provider in BC.
Does the VG40 need electricity as well as gas?
Yes. Besides the 3/4″ gas connection, it needs a 120 V / 60 Hz / 1 phase supply (9.0 A) for the ignition and controls.
