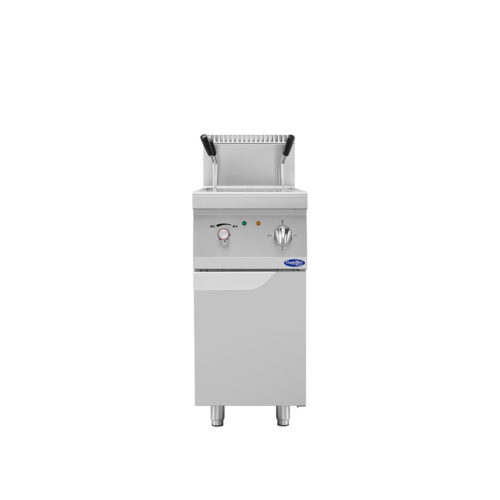

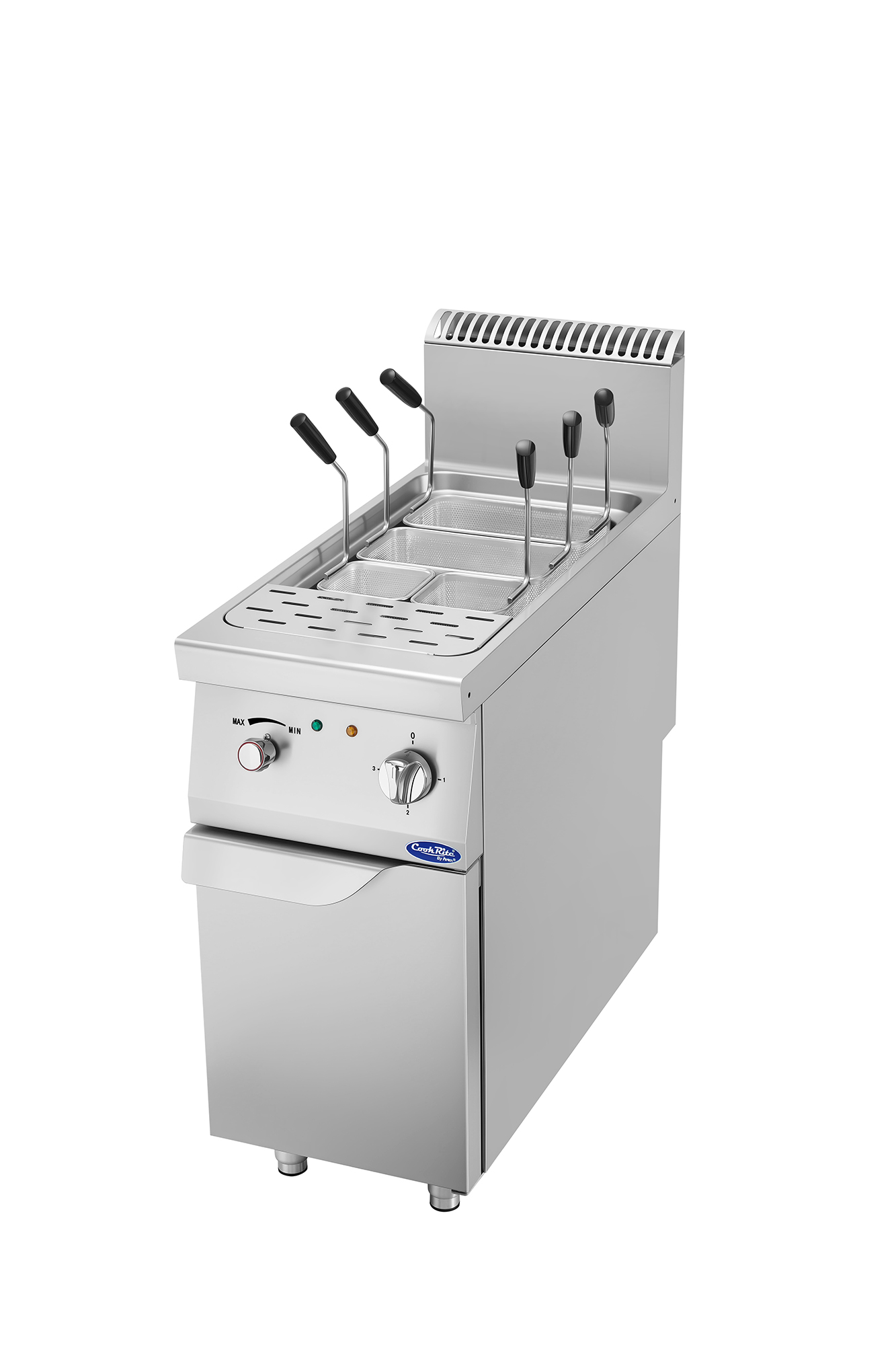

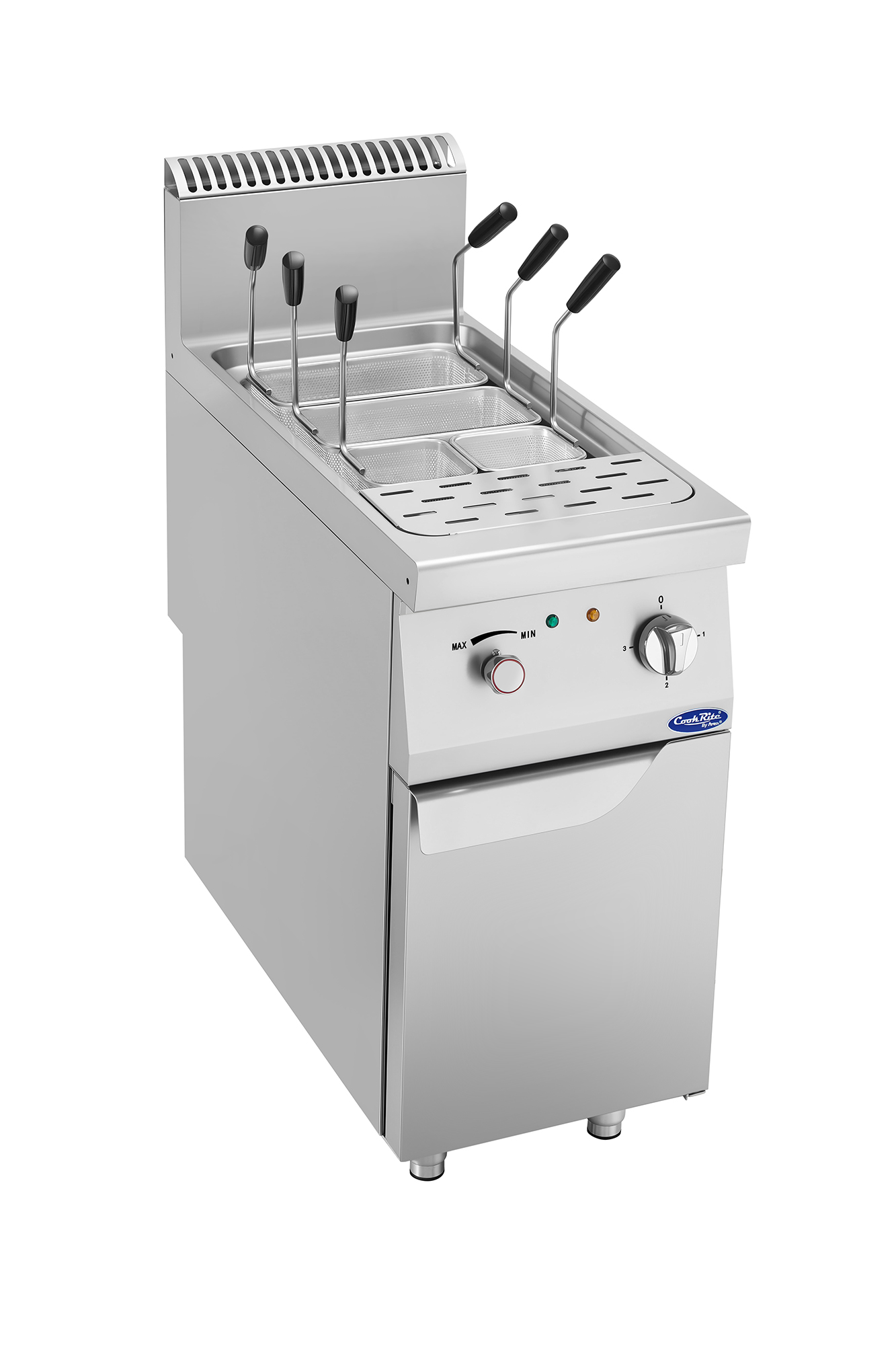

Atosa PCE-9 15-3/4″ Electric Pasta Cooker with One Tank

Description

The Atosa PCE-9 is an electric pasta cooker with a single 10-gallon stainless steel tank in a 15-3/4″ wide cabinet. It is made for restaurants, cafés and delis that cook fresh or dried pasta to order and want a compact electric unit for the line, running on 208 V three-phase power at 10 kW. Standard features include 3-position temperature control and a high-limit safety shut-off.

Key features

• One 10-gallon tank – enough volume for steady pasta service from a single compact unit.
• 3-position temperature control – set the cooking heat to suit the product.
• High-limit safety shut-off – the unit shuts off heating if an over-temperature condition occurs.
• SUS316 stainless steel tank – deep-drawn, sandblasted and electropolished, with the tank welded to the top.
• Stainless steel exterior and interior – tough and easy to wipe down.
• Standard basket configuration – (2) 1/3 baskets, (1) 1/6 basket left and (1) 1/6 basket right.
• 1″ NPT drain valve and manual water fill – fill through the inlet pipe and valve; empty through the drain valve.
• 4″ to 6″ adjustable legs – level the unit on uneven floors.
• ETL certified – listed on the Atosa spec sheet.

How the PCE-9 fits your kitchen

The PCE-9 measures 15-3/4″ x 35-3/8″ x 44-7/8″ (W x D x H) and weighs 111.1 lb net, so it slots into a narrow gap on the line. It needs a 208 V, 60 Hz, three-phase supply rated for 10 kW, plus a 3/4″ NPT water inlet and a 1″ NPT drain. Atosa lists typical clearances of 6″ to combustible sides and rear and 0″ to non-combustible surfaces. Have an electrician and plumber confirm the supply and connections against the Atosa spec sheet. A single tank suits operations cooking one pasta at a time, or lower volumes.

Other sizes in this series

• PCE-18 – 31-1/2″ wide, two independent 10-gallon tanks, 10 kW each.

Why buy from Babak Food Equipment?

• Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
• 20+ years in business and a 4.9★ Google rating from 380+ reviews.
• Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
• Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

What power and water does the Atosa PCE-9 need?
It runs on 208 V, 60 Hz, three-phase power at 10 kW, with a 3/4″ NPT water inlet and a 1″ NPT drain. Typical clearances are 6″ to combustible sides and rear and 0″ to non-combustible. Have licensed trades confirm the hookup.

How do I clean the PCE-9?
Let the water cool before draining through the drain valve, then clean the tank with mild detergent and hot water using a soft cloth or non-abrasive brush. Avoid steel wool on the stainless steel. Follow the instructions supplied with your unit.

Where can I find the PCE-9 spec sheet?
The official Atosa spec sheet for the PCE-9 is in the download section below, so you can check the electrical rating, water connections, tank size and dimensions before you order.

Should I choose the PCE-9 or PCE-18?
Choose the PCE-9 if one tank is enough and space matters; it is 15-3/4″ wide with one 10-gallon tank. The PCE-18 is 31-1/2″ wide with two independent tanks, which suits higher volume or two products at once.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
