Vulcan 2ER85DF-1 Electric Fryer Battery, 2 x 85 lb, Digital control, Built-in Filtration
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | Vulcan |
|---|---|
| Product Line | ER85F Series |
| product type | Commercial electric fryer with built-in filtration |
| Power Type | Electric |
| KW | 24 kW per fryer |
| Hertz | 60 Hz |
| Phase | 3 Phase |
| Capacity per Fry Pot | 85 lb |
| Number of Fry Baskets | 2 (twin baskets) per fryer |
| Temperature Range | 200 – 390°F |
| Installation Type | Free-standing |
| Construction | Stainless steel cabinet, 16 gauge stainless steel tank |
| Certificate | CSA design certified, NSF listed |
| Amps | 67 A per line at 208 V; 29 A per line at 480 V (per fryer) |
| Model | 2ER85DF-1 |
| Number of Fry Pots | 2 |
| Width | 42 Inches |
| Control | Solid state digital, 3 melt modes, boil-out, 2 timers |
| Total BTU | 48 kW total |
| Voltage | 208 V standard; 240 V or 480 V optional |
| Depth | 34 3/8 Inches |
| Overall Height | 39 7/16 Inches |
| Working Height | 35 3/4 Inches |
| Heating Elements | 24 kW low watt density ribbon style |
| Filter Pan | Drawer style, seamless 18 gauge stainless steel, 100 lb capacity |
| Filter Pump | 1/3 HP, 8 gallons per minute |
| Filter Screen | Stainless steel mesh, 2-sided |
| Drain Valve | 1 1/4″ full port ball type with interlock switch |
| Legs | Four 6″ adjustable |
| Clearance to Combustibles | 6″ sides and rear |
Description
Searching for a vulcan electric fryer? the 2ER85DF-1 delivers it with two 85 lb tanks, 24 kW per fryer and a one-touch filter system built into the cabinet. Controls are digital, with three melt modes, a boil-out mode and two countdown timers. Each tank has its own power supply. Each tank has its own power supply.
Key features
- 85 lb oil capacity in each 16 gauge stainless steel fry tank
- 24 kW low watt density ribbon-style elements in every fryer, with temperature control from 200 to 390°F within +/- 2°
- Built-in KleenScreen PLUS filtration: a one-touch switch starts the 1/3 HP pump, which moves 8 gallons per minute through a drawer-style filter pan
- Boil Out ByPass lets you clear boil-out solution without touching the filter pan or pump
- Drain valve interlock switch turns the elements off when the valve opens or the elements are lifted for cleaning
- Multiple fat melt modes, high limit control and a 1 1/4″ full port ball-type drain valve
- Stainless steel cabinet on four 6″ adjustable legs, twin fry baskets, tank brush and clean-out rod
Options
- Casters, stainless steel tank cover, extra twin baskets or a large single basket, Frymate VX21S dump station and splash guard
- KleenScreen PLUS micro-filtration envelopes that filter to 0.5 microns, 240 V or 480 V three phase, single basket lift and rear oil reclamation connection
Ideal for
High-volume restaurants and commercial kitchens that want 85 lb electric fryers with filtration built in and no gas line.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Does the 2ER85DF-1 have a filter built in?
Yes. Each cabinet houses a drawer-style filter pan with a 1/3 HP pump. The filter system accommodates up to three fryer cabinets, and in a battery the master fryer’s 5 A motor load is added to the line.
Is the Vulcan 2ER85DF-1 spec sheet available?

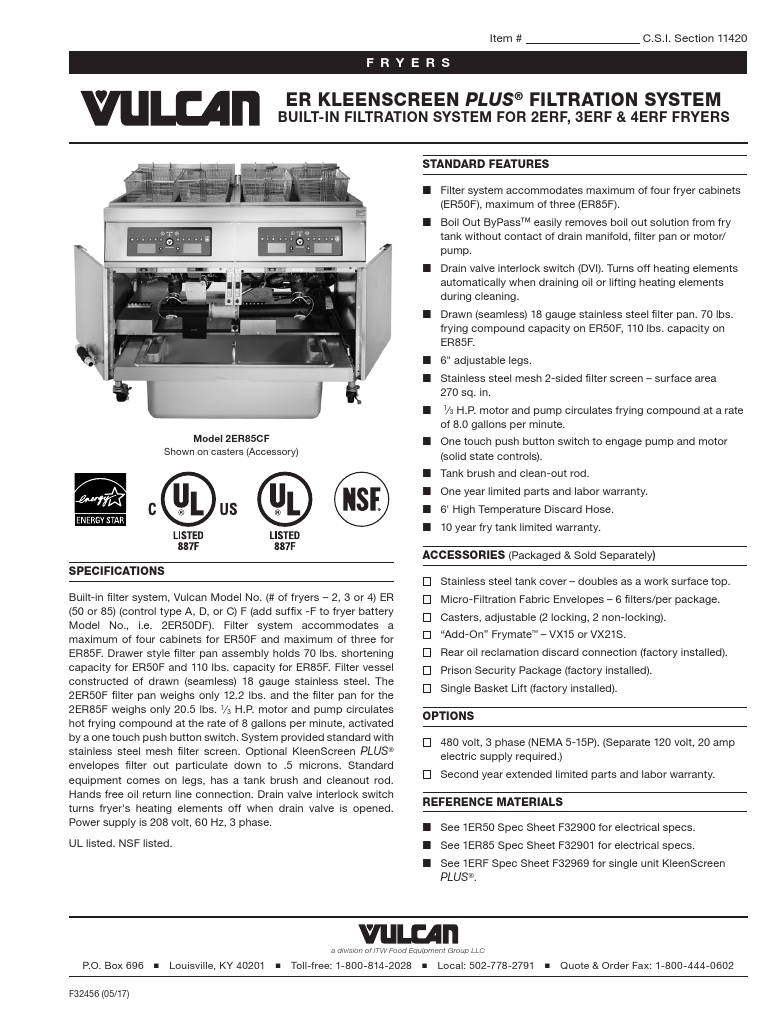

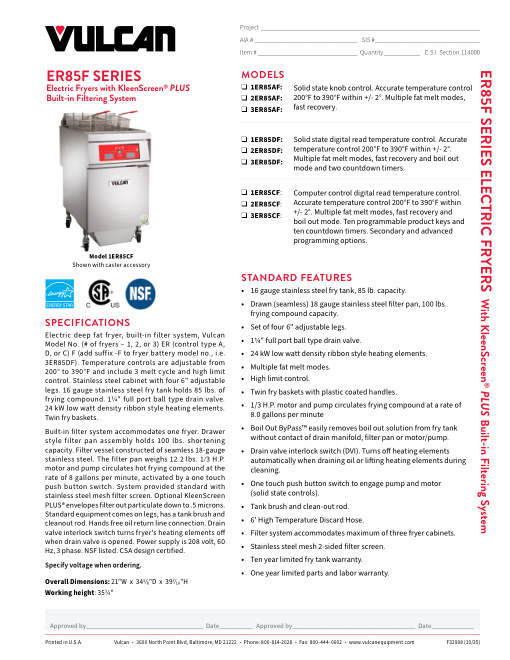

Yes. The official Vulcan ER85F Series spec sheet is in the download section below. It lists controls, electrical loading, filter pan data, dimensions, clearances and accessories.
What are the electrical requirements for the Vulcan ER85F?
Each fryer is 24 kW three phase and needs its own supply: about 67 A per line at 208 V or 29 A per line at 480 V. Our team can match the voltage to your building.
