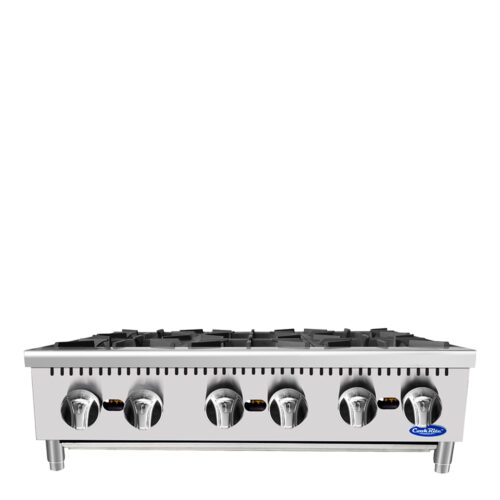

Atosa ACHP-6 36″ Gas Countertop Range with Six Open Burners
Exclusive Price :​
Original price was: $1,691.00.$1,165.00Current price is: $1,165.00.
Need Help :
Specs
| Weight | 134 lbs |
|---|---|
| Brand | Atosa |
| Gas Type | Natural gas or propane (LP) |
| Number of Burners | 6 |
| Burner Style | Open burners |
| Model | ACHP-6 |
| Width | 36″ |
| BTU | 32,000 per burner |
| Total BTU | 192,000 BTU/h (NG and LP) |
| heat control | Independent manual control for each burner |
| Valve Types | Standing pilot |
| Cooking Surface Material | Cast iron grates |
| Gas Inlet Size | 3/4″ NPT (rear) |
| Exterior Material | Stainless Steel |
| Installation Type | Countertop |
| Gross Weight (lbs) | 180 lbs |
| Certificate | ANSI Z83.11, CSA 1.8, NSF/ANSI 4 |
| Depth | 27-3/5″ |
| Height | 13-1/10″ |
| Legs | Stainless steel |
| Crumb Tray | Full-width stainless steel |
| Gas Pressure | NG 4″ w.c.; LP 10″ w.c. (regulator supplied) |
Description
Need six burners of countertop cooking power? The Atosa ACHP-6 is a 36-inch gas hot plate with six 32,000 BTU/h open burners and heavy cast iron grates. Operators searching for an Atosa ACHP-6 often want it to extend an existing line, cook stocks and sauces beside a range, or set up a compact cooking station in a commissary or banquet kitchen.
Key features
- Six 32,000 BTU/h open burners – 192,000 BTU/h combined for a full burner line.
- Independent manual control – each burner is set separately.

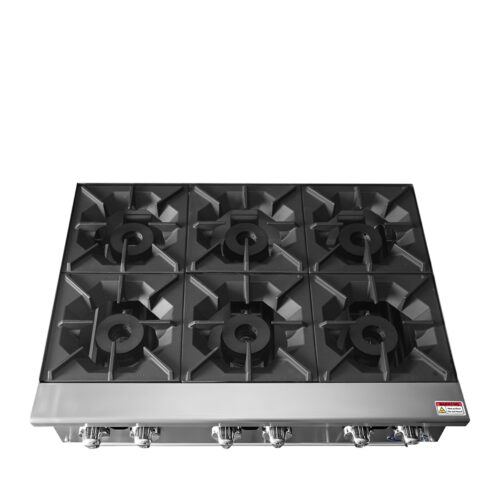

- Heavy-duty cast iron top grates – hold up to large pots and pans.
- Standing pilots on open burners – ready to light as soon as the gas is on.

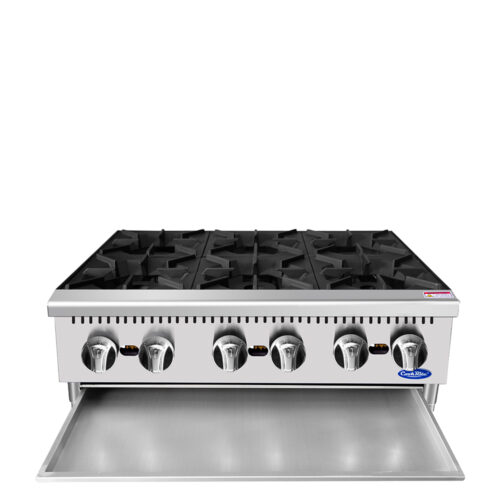

- Full-width stainless steel crumb tray – spills are easy to remove.
- Stainless steel exterior and interior – long-lasting and simple to wipe.
- Stainless steel legs standard – lifts the hot plate clear of the counter.
- 3/4″ NPT rear gas connection with regulator – a single hook-up point.
How the ACHP-6 fits your kitchen
The ACHP-6 measures 36 inches wide and 27-3/5 inches deep, stands 13-1/10 inches tall and weighs 134 lb, so use a strong equipment stand or counter. Atosa’s manual says to place it on an incombustible surface under a matched exhaust hood, with 6 inches clear at both sides and the back, and 4 inches below. The gas supply is 4 inches w.c. on natural gas or 10 inches w.c. on propane.
Other sizes in this series
Why buy from Babak Food Equipment?
- Authorized Atosa dealer – sales, service and installation options, with warranty support coordinated with Atosa.
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What are the installation requirements for the ACHP-6?
Connect a 3/4″ NPT gas line (4″ w.c. natural gas, 10″ w.c. propane) to the rear regulator. The manual calls for a non-combustible surface, a hood, 6″ at the sides and back and 4″ below, with installation by a licensed technician.
How do I clean the ACHP-6?
Shut off the burners and let the unit cool. Lift off the grates, wipe the stainless steel with a mild detergent and soft cloth, and empty the crumb tray. Avoid abrasive pads and never spray water at the burners or controls.
Where can I find the ACHP-6 spec sheet?
The official Atosa spec sheet, manual and parts breakdown are in the download section below. They give BTU ratings, gas pressure and dimensions for the ACHP-6, so you can confirm the fit before you order.
Should I choose the ACHP-6 or the ACHP-4?
The ACHP-6 gives you six burners and 192,000 BTU/h in 36 inches of width. The ACHP-4 gives four burners and 128,000 BTU/h in 24 inches, so it suits smaller counters or when you need less total output.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
