Hobart AM16-BAS-2 High Temperature Door-Type Dishwasher 208-240V 3 Phase
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 295 lbs |
|---|---|
| Brand | HOBART |
| Model | AM16-BAS-2 |
| Manufacturer Code | AM16-BAS-2 |
| Product Line | AM16 Base |
| Power Type | Electric |
| Voltage | 208–240 V |
| Phase | 3 Phase |
| Hertz | 60 Hertz |
| Amps | 52.5 A single point (60 A max. protective device) |
| High or Low Temp | High Temp |
| Booster Wattage | 7.1 kW |
| Racks Per Hour | 60 |
| Water Usage | 0.67 Gallons Per Rack |
| Wash Tank Capacity | 10.5 gal. |
| Number of Cycles | 4 |
| Wash Cycle Time | 1 – 6 Minutes |
| HP | 2 HP wash pump |
| Door Opening Height | 17 Inches |
| Height (open) | 78 1/2 Inches |
| Dishwasher Style | Straight-through / Corner |
| Control Type | Touchscreen with WiFi (SmartConnect) |
| Plug Type | Hardwire |
| Water Inlet Size | 3/4″ female garden hose |
| Width | 25 3/16 Inches |
| Shipping Weight | 312 lb |
| Depth | 24 7/16 Inches |
| Height | 59 Inches (hood closed) |
| Dishes per Hour | 1,500 (25 per rack) |
| Glasses per Hour | 2,700 (45 per rack) |
| Wash Cycles | 1, 2, 4 or 6 minutes |
| Tank Heat | 5.4 kW |
| Wash / Rinse / Drain Pump | 2 HP / 0.18 HP / 0.21 HP |
| Water per Hour | 40.2 gal (maximum) |
| Incoming Water | 110°F minimum, 15–65 PSI |
| Drain | Pumped, 5/8″ barb, 18.5 gpm peak |
| Exhaust (if hood required) | 450 CFM |
| Rack Size | 19 3/4″ × 19 3/4″ |
| Table Height | 33 5/16 Inches |
| Dual-Point Electrical | 26.9 A (wash/heat) + 25.6 A (booster) @ 208–240 V / 3 ph |
| Heat Gain to Space | 7,800 BTU/hr latent, 4,000 BTU/hr sensible |
Description
The Hobart AM16-BAS-2 is a high-temperature, door-type dishwasher from the Hobart AM16 Base range. It cleans up to 60 racks an hour and sanitizes with a built-in 7.1 kW electric booster, so no chemical sanitizer is needed. Touchscreen controls, WiFi and a pot and pan rating make the AM16-BAS-2 a strong choice for busy restaurants, hotels and institutional kitchens that want speed and low running costs.
Key features
- 60 racks per hour – about 1,500 dishes or 2,700 glasses an hour
- Sense-A-Temp™ 70°F-rise electric booster (7.1 kW) for high-temperature sanitizing
- 0.67 gallons per rack pumped final rinse with two-stage filtration
- Smart touchscreen controls with WiFi – the SmartConnect app shows machine status, temperature logs, error codes and cost and usage data
- Timed wash cycles of 1, 2, 4 or 6 minutes, with an NSF pot and pan rating on the 2, 4 and 6-minute cycles
- Pillarless opening, 5-sided insulated hood and a 17″ door opening
- Door-actuated start, automatic fill, AutoClean, vent fan control and a delime cycle
- Single-point electrical connection, field convertible to dual point; 3 phase, field convertible to single phase
Ideal for
High-volume restaurants, hotels, banquet kitchens, hospitals and schools that need a fast high-temperature door-type dishwasher for straight-through or corner tabling.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ

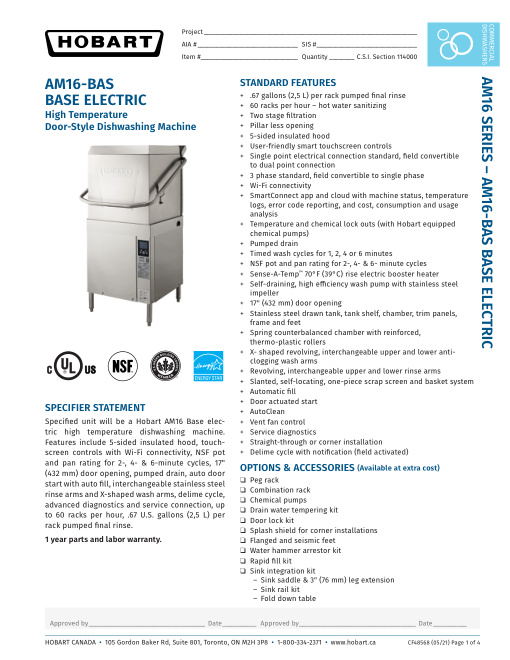

Where can I find the Hobart AM16 spec sheet?
The official Hobart AM16-BAS spec sheet and the AM16 manual are in the download section below. The sheet covers dimensions, tabling, electrical and plumbing data.
What does the ‘-2’ mean in AM16-BAS-2?
This listing is the 208–240 V, 3-phase version of the AM16-BAS. Hobart also builds 208–240 V single-phase and 480 V versions, so our team will confirm the electrical code with you before you order.
Does the Hobart AM16-BAS-2 need a hood?
If a vent hood is required in your area, Hobart specifies at least 450 CFM of exhaust. Our team can help you check local code and your ventilation.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
