Hobart LXeR-1 Advansys Undercounter Dishwasher 208-240V
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | HOBART |
|---|---|
| Model | LXeR-1 Advansys |
| Manufacturer Code | LXeR-1 |
| Product Line | LXe Series – Advansys |
| Power Type | Electric |
| Voltage | 208–240 V |
| Phase | 1 Phase |
| Hertz | 60 Hertz |
| Amps | 30.5 A (40 A max. protective device) |
| High or Low Temp | High Temp |
| Booster Wattage | 4.9 kW |
| Racks Per Hour | 30 light / 24 normal / 13 heavy |
| Water Usage | 0.62 Gallons Per Rack |
| Wash Tank Capacity | 2.9 gal. |
| Number of Cycles | 3 (light, normal, heavy) |
| Door Opening Height | 17 Inches |
| Installation Type | Undercounter |
| Water Inlet Size | 3/4″ female garden hose |
| Certificate | UL listed, NSF |
| Width | 23 15/16 Inches |
| Shipping Weight | 185 lb |
| Depth | 26 3/4 Inches |
| Height | 32 1/2 Inches |
| Cycle Times | 120 / 146 / 275 seconds |
| Water Supply | Cold, 55–80°F recommended |
| Water Pressure | 15–65 PSIG flowing |
| Water per Hour | 14.88 gal (maximum) |
| Wash / Rinse Temperature | 150°F / 180°F |
| Tank Heat | 1.8 kW |
| Wash / Rinse Motor | 0.85 HP / 0.19 HP |
| Drain | Pumped, 5/8″ barb, 4.0 gpm peak |
| Energy Recovery | Steam elimination with condenser coil |
| Rack Size | 20″ × 20″ (1 flat, 1 peg included) |
| Heat Output | 1,100 BTU/hr latent, 2,000 BTU/hr sensible |
Description

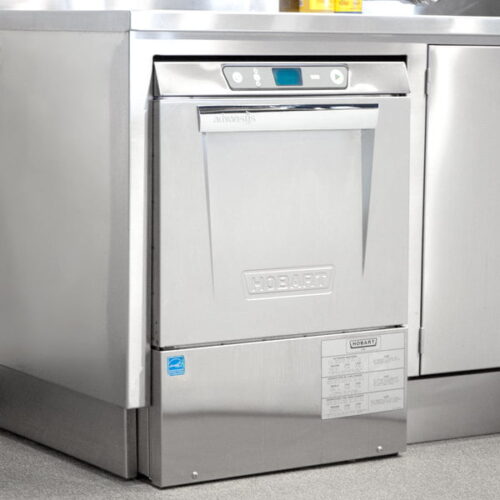

The Hobart LXeR-1 Advansys is a ventless, high-temperature undercounter dishwasher with energy recovery. The Hobart Advansys system captures heat from the steam at the end of each cycle and uses it to pre-heat the next rinse, so the machine runs on a cold water supply and keeps steam out of the room. With 0.62 gallons per rack and an NSF pot and pan cycle, this Advansys dishwasher suits busy bars, cafés and restaurants.
Key features
- Steam elimination and energy recovery – a condenser coil recovers waste heat and pre-heats incoming rinse water
- Custom cycle selection: light (120 s, 30 racks/hr), normal (146 s, 24 racks/hr) and heavy (275 s, 13 racks/hr)
- 0.62 gallons of water per rack, one of the lowest in the LXe series

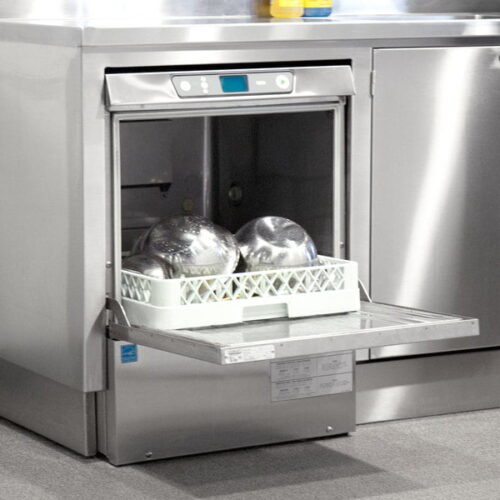

- NSF-certified pot and pan cycle on the heavy setting, plus a 17″ door opening
- 4.9 kW Sense-A-Temp™ booster with a 70°F rise for a 180°F sanitizing rinse
- Automatic delime cycle (including the booster), dirty water indicator and energy saver mode
- Advanced service diagnostics, low chemical alerts and chemical pump auto-prime
- Auto clean cycle washes down the inside of the machine at shutdown
Ideal for
Bars, cafés, restaurants and coffee shops that want a high-temperature undercounter dishwasher without extra steam, heat or a hot water line.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Do you have parts for the Hobart LXeR, such as 347177-1?
Our team can help you source genuine Hobart parts for the LXeR. Send us the part number (for example 347177-1 or 353271-1) together with the model and serial number from the machine’s nameplate.
What does Advansys mean on a Hobart dishwasher?
Advansys is Hobart’s name for its energy recovery models. The LXeR condenses the steam inside the chamber at the end of each cycle and uses that heat to pre-heat the next rinse, so it needs only a cold water connection.
Where is the Hobart LXeR spec sheet?
The official Hobart LXeR spec sheet, the LXe manual and the Advansys programming card are in the download section below.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
