Vulcan 1ER85AF-1 85 lb Electric Fryer, Analog Control, Filtration
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | Vulcan |
|---|---|
| Product Line | 1ER85 Series Free Standing Electric Fryers |
| Power Type | Electric |
| KW | 24 kW |
| Phase | 3 Phase |
| Hertz | 50/60 Hz |
| Capacity per Fry Pot | 85 lb |
| Number of Fry Pots | 1 |
| Number of Fry Baskets | 2 (twin baskets) |
| Temperature Range | 200–390°F |
| Installation Type | Free-standing on legs |
| Construction | Stainless steel front, sides and 16 gauge fry tank |
| Certificate | NSF listed, CSA design certified |
| Width | 21 Inches |
| Element Style | Low watt density ribbon style |
| Voltage | 208 V or 480 V (per model code) |
| Model | 1ER85AF-1 |
| Control Type | Solid state analog knob |
| Depth | 34 3/8 Inches |
| Height (Working) | 35 3/4 Inches |
| Overall Height | 39 7/16 Inches |
| Drain Valve | 1 1/4″ full-port ball type |
| Safety | High limit control |
| Legs | 4 adjustable, 6″ |
| Clearance to Combustibles | 6″ sides and rear |
| Amps per Line | 67 A at 208 V; 29 A at 480 V (3 phase) |
| Power Supply | Separate supply for each tank |
| Filtration | Built-in (F model) |
Description
Looking at electric fryers with filtration? The Vulcan 1ER85AF-1 offers 85 lb of oil capacity, a solid state analog knob control, and a steady 200–390°F range. Stainless steel on the front and sides keeps it easy to wipe down at the end of a shift. Four 6-inch adjustable legs set the working height.
Key features
- 85 lb oil capacity in a 16 gauge stainless steel fry tank with a 1 1/4-inch full-port ball-type drain valve
- 24 kW low watt density ribbon-style heating elements for fast, gentle recovery
- Temperature control from 200°F to 390°F within ±2°, with fat melt modes and high limit protection
- Built-in filtration on the F models, activated from the front
- Stainless steel front and sides on four 6-inch adjustable legs
- Twin fry baskets with plastic coated handles
Options
- Tank cover that doubles as a work surface, casters, extra baskets, tri-baskets, Frymate dump station, connecting kit and splash guard are packaged and sold separately.
Ideal for
High-volume restaurants and institutional kitchens that fry large batches and want electric heat with built-in oil filtration.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
What do the letters in 1ER85AF-1 stand for?
1ER85 is the 85 lb electric fryer series. A marks the solid state analog knob control, F marks the filtration version and -1 is the electrical variant. Our team can confirm voltage for your site.
Is the Vulcan 1ER85AF-1 spec sheet available?

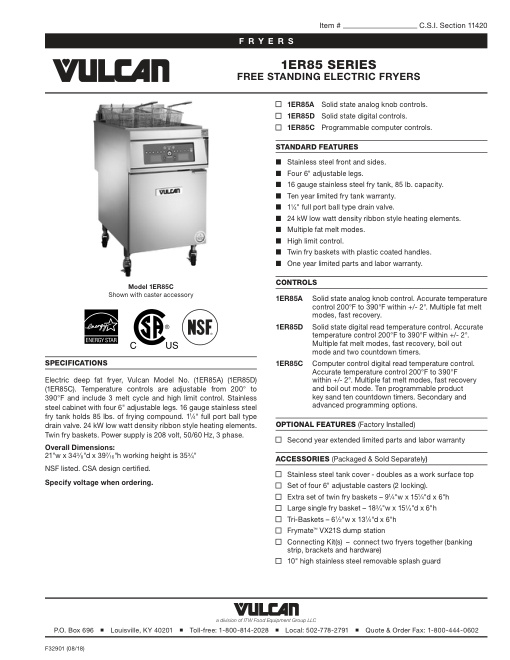

Yes. The official Vulcan 1ER85 series electric fryer spec sheet is in the download section below. It lists kW, amps per line, dimensions, controls and installation notes.
What power does the Vulcan 1ER85AF-1 draw?
The series is rated 24 kW, 3 phase: 67 amps per line at 208 V and 29 amps per line at 480 V. Each fryer tank needs its own separate power supply, so plan the circuit with your electrician.
