Vulcan 2ER50AF-2-Tank 50 lb Electric Fryer, Solid state knob control, Built-in Filter
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | Vulcan |
|---|---|
| Product Line | ER50F Series Electric Fryer with KleenScreen PLUS Built-in Filtration |
| Power Type | Electric |
| Capacity per Fry Pot | 50 lb |
| Number of Fry Baskets | 2 (twin baskets) per fry pot |
| Temperature Range | 200–390°F |
| KW | 34 kW total (2 x 17 kW) |
| Voltage | 208 V, 240 V or 480 V (factory configured) |
| Phase | 3 Phase |
| Hertz | 60 Hz |
| Installation Type | Free-standing on 6″ adjustable legs |
| Construction | Stainless steel cabinet, 16 gauge stainless steel tank |
| Certificate | NSF listed, CSA design certified |
| Model | 2ER50AF-2 |
| Number of Fry Pots | 2 |
| Width | 31 Inches |
| Control | Solid state knob control, ±2° |
| Amps | 47 A (208 V), 41 A (240 V), 20 A (480 V) per line, per fry pot |
| Number of Baskets | 4 |
| Depth | 34 3/8 Inches |
| Working Height | 35 3/4 Inches |
| Overall Height | 39 7/16 Inches |
| Drain Valve | 1 1/4″ full port ball type |
| Filter Pump | 1/3 HP, about 8 gal/min |
| Filter Screen | Stainless steel mesh, 2-sided |
| Safety | Drain valve interlock and high limit control |
| Clearance | 6″ sides and rear to combustibles |
| Number of Baskets | 4 (twin baskets in each tank) |
Description
Staff who filter oil every shift will appreciate the 2ER50AF-2. Each of its two 50 lb tanks has a one-touch KleenScreen PLUS pump circuit with a drawer-style filter pan, so oil can be strained without hauling a portable unit. Controls are solid state knob control, 200–390°F within ±2°, multiple fat melt modes and fast recovery, and a high limit control backs it up.
Key features
- 50 lb capacity per fry tank in 16 gauge stainless steel, with a 1 1/4″ full port ball-type drain valve
- 17 kW low watt density ribbon-style heating elements per tank
- KleenScreen PLUS built-in filtration: a drawer-style filter pan, 1/3 HP pump circulating about 8 gallons per minute and one-touch push button operation
- Boil Out ByPass drains boil-out solution without touching the filter pan or pump
- Drain valve interlock switch turns off the heating elements when the drain valve is opened
- Twin fry baskets, tank brush and clean-out rod included
- Temperature range of 200°F to 390°F with multiple fat melt modes and a high limit control; four 6″ adjustable legs
Options
- Tank cover, casters, extra baskets, splash guard and connecting kit
- Single basket lift and rear oil reclamation connection (factory installed)
Ideal for
Restaurants, fast-casual kitchens and institutions that want electric fryer batteries with filtration built into every cabinet.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
How do I read the model number 2ER50AF-2?
The 2 is the number of fryers, ER means electric, 50 is the tank size in lb, A is the control type (analog) and F is the built-in filter. The trailing -2 is a configuration suffix, so ask our team to confirm the voltage for this listing.
Is the Vulcan 2ER50AF-2 spec sheet available?

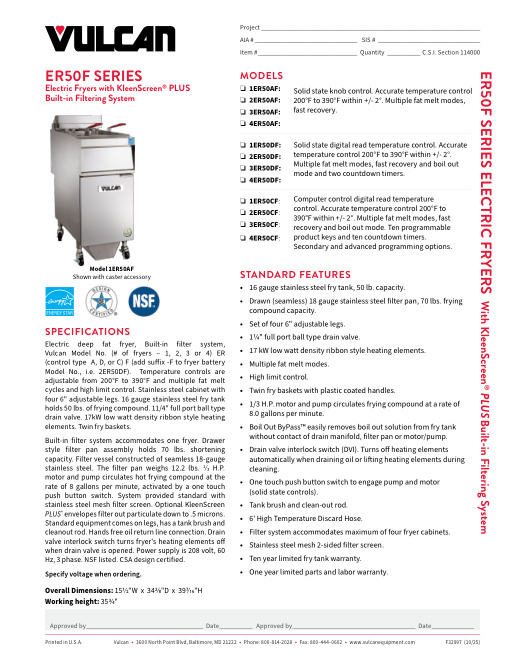

Yes. The official Vulcan ER50F series electric fryer spec sheet is in the download section below. It covers filter specifications, kW, amps per line for each voltage, service connections and options.
How does filtration work on the Vulcan 2ER50AF-2?
A built-in KleenScreen PLUS system with a 1/3 HP pump circulates oil at about 8 gallons per minute at the push of one button. A stainless steel mesh screen is standard, and optional micro-filtration envelopes capture particles down to 0.5 microns.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
