Hobart FD4/500-1 Commercial Garbage Disposer 5 HP 200-230/460V 3 Phase
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | HOBART |
|---|---|
| Model | FD4/500-1 |
| Manufacturer Code | FD4/500-1 |
| Product Line | FD4 Series |
| HP | 5 |
| Voltage | 200–230/460 V |
| Phase | 3 Phase |
| Hertz | 60 Hertz |
| Amps | 14.0 A / 7.0 A |
| Power Type | Electric |
| Material | Ductile iron housings, stainless steel legs |
| Certificate | ASSE 1009 |
| Shipping Weight | 190 lb |
| Height | 27 3/8 Inches (adjustable 25 1/2–31 3/4″) |
| Throat Opening | 7″ I.D. cone mount |
| Flywheel | 10 5/8″ hardened ductile steel alloy with breaker blade |
| Shredder Ring | 1 3/8″ high, 24 teeth |

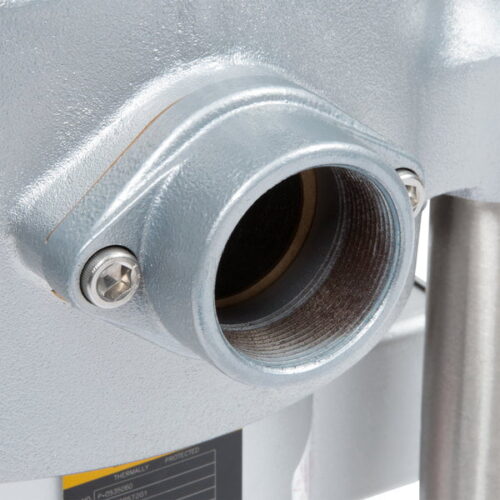

| Drain Connection | 2″ pipe thread |
| Shaft Seal | Three lip seals with slinger |
| Flow Control | 10 gpm (optional) |
| Grinding | Dual-directional |
| Cone Options | 18″ standard, 15″ optional |
| Control Groups | 5 or 6 (automatic reversing) |
| Included | Disposer only |
Description
The Hobart FD4/500-1 is the largest disposer in Hobart’s FD4 line, a 5 HP commercial garbage disposer for operations that handle food waste from thousands of meals a day. Its hardened steel alloy flywheel and shredder ring and heavy ductile iron housings are built for peak periods in hotels, hospitals, universities and central kitchens, where a smaller disposer would struggle.
Key features
- 5 HP continuous-duty motor with permanently lubricated bearings and inherent overload protection
- 10 5/8″ hardened ductile steel alloy flywheel with a breaker blade; its outside edge is cut at 45°
- Adjustable cutting gap – the flywheel can be raised or lowered to adjust for wear and extend life
- Hardened ductile steel alloy shredder ring, 1 3/8″ high with 24 grinding teeth
- Three lip seals with a slinger on top of the motor
- Dual-directional grinding – starts in the opposite direction each time with control groups 5 and 6
- Heavy ductile iron upper housing and machined ductile gray cast iron lower housing
- Fits 7″ I.D. throat cones with a vinyl isolating ring; 2″ drain connection
Ideal for
Hotels, hospitals, universities, commissaries and large restaurants serving about 2,000–4,000 meals a day.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
When do I need a 5 HP disposer like the FD4/500?
Hobart’s selector chart recommends the FD4/500 for restaurant, hotel and hospital soiled-dish tables serving about 2,000 to 4,000 meals a day, or for waste with a lot of bones and hard material.
Is the FD4/500-1 sold with a cone and controls?
This listing is the disposer only. Accessory groups (an 18″ cone is standard on groups A and B) and control groups 5 or 6 are separate. Our team can help you choose.
Where is the Hobart FD4/500 spec sheet?
The official Hobart FD4/500 spec sheet is in the download section below.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
