Vulcan 1VEG35M-1 Gas Fryer, 35–40 lb, 70,000 BTU, Free-Standing
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 210 lbs |
|---|---|
| Brand | Vulcan |
| Product Line | VEG Series Entry Level Gas Fryer |
| Heating Source | Gas |
| BTU | 70,000 BTU/hr |
| Capacity per Fry Pot | 35–40 lb |
| Number of Fry Pots | 1 |
| Number of Fry Baskets | 2 (twin baskets) |
| Temperature Range | 200–400°F |
| Control | Millivolt snap-action thermostat |
| Installation Type | Free-standing |
| Construction | Stainless steel front and tank; galvanized sides and back |
| Gas Inlet Size | 3/4″ rear |
| Certificate | CSA design certified, NSF listed, ENERGY STAR |
| Width | 15 1/2 Inches |
| Fry Pot Width | 14 Inches |
| Fry Pot Depth | 14 Inches |
| Shipping Weight | 210 lb |
| Model | 1VEG35M-1 |
| Depth | 29 3/4 Inches |
| Working Height | 34 5/8 Inches |
| Overall Height | 46 5/8 Inches |
| Ignition | Standing pilot, millivolt; no electric hook-up |
| Safety | Hi-limit shut-off protector |
| Drain Valve | 1 1/4″ full port ball type |
| Clearance to Combustibles | 6″ sides and rear |
| Gas Pressure | Natural gas 4.0″ W.C.; propane 10.0″ W.C. |
| Legs | 4 adjustable, nickel plated |
Description
Compact but built for real volume, the Vulcan 1VEG35M-1 is an entry level free-standing gas fryer with a 35–40 lb stainless steel tank. It is ENERGY STAR certified, rated at 70,000 BTU/hr, and works without electricity thanks to its millivolt thermostat, so it suits kitchens that want a simple commercial gas fryer at a sensible footprint of 15 1/2 inches.
Key features
- 70,000 BTU/hr input for a 35–40 lb stainless steel fry tank, ENERGY STAR certified
- Behind-the-door snap-action millivolt thermostat adjusts from 200°F to 400°F, with a standing pilot so no electric hook-up is needed
- Hi-limit shut-off protector closes the gas combination valve and standing pilot
- Large cold zone and a 1 1/4″ full port ball type drain valve
- Stainless steel front and reinforced door with a magnet to hold it closed; G90 galvanized sides and back
- Built-in flue deflector, nickel plated tube rack and a removable stainless basket hanger for cleaning
- Four nickel plated adjustable legs
Included
- Twin fry baskets with plastic coated handles
- Drain extension
Options
- 6″ casters, tank cover, connecting kit, crumb screen, extra baskets, Frymate dump station and splash guard
Ideal for
Cafés, pubs, takeout shops and small restaurants that need a compact free-standing gas fryer.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Does the 1VEG35M-1 run on natural gas or propane?
The sheet covers both fuels and asks for the gas type, and for elevation above 2,000 ft on natural gas or 4,999 ft on propane, to be specified when ordering. Confirm your fuel when you request a quote.
Is the Vulcan 1VEG35M-1 spec sheet available?

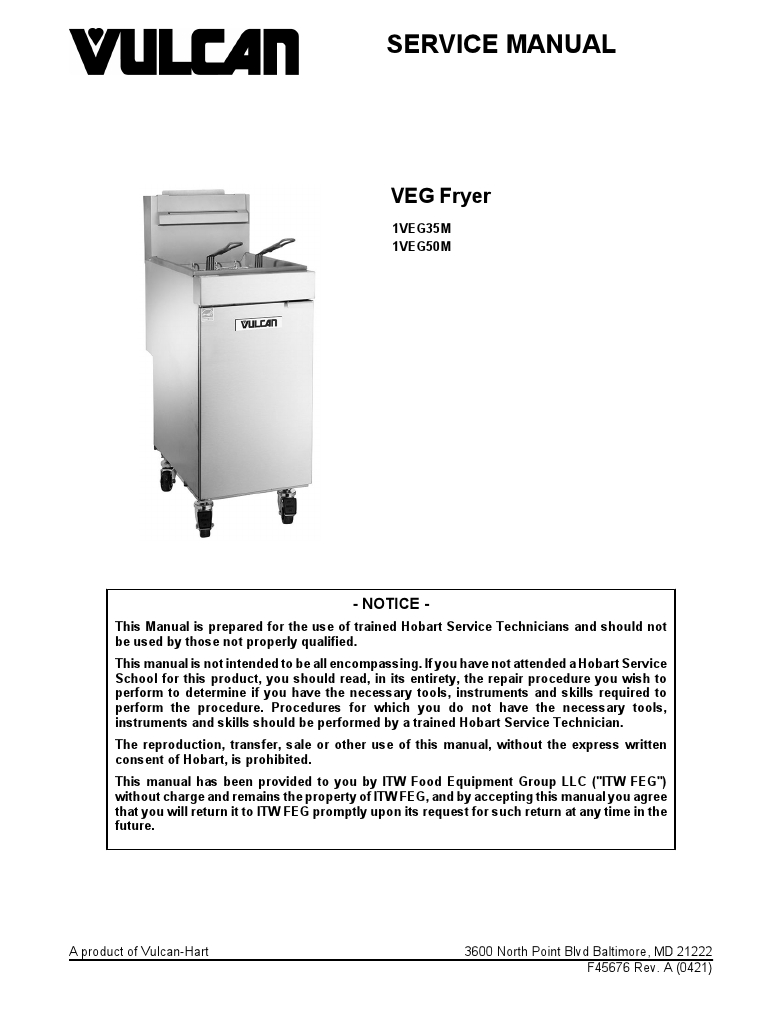

Yes. The official Vulcan VEG series spec sheet is in the download section below. It covers dimensions, gas connection, clearances, accessories and elevation options.
Does the Vulcan 1VEG35M-1 fryer need electricity?
No. It uses a millivolt control system with a standing pilot, so there is no electric hook-up. It needs a 3/4″ rear gas connection and 6″ clearance at the sides and rear.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
