Vulcan SX60F-6B24GN 60″ Natural Gas Range, 6 Burners, 24″ Griddle, 2 Ovens
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Weight | 815 lbs |
|---|---|
| Brand | Vulcan |
| Product Line | SX Series |
| Heating Source | Gas |
| Number of Burners | 6 |
| Burner Style | Open burners, cast |
| Number of Ovens | 2 |
| Range Base Style | Standard ovens |
| Oven BTU | 30,000 BTU/hr each |
| Griddle BTU | 30,000 BTU/hr |
| Total BTU | 258,000 BTU/hr |
| Griddle Size | 24 Inches |
| Plate Thickness | 3/4 Inch |
| Maximum Temperature | 500°F |
| Temperature Range | 250–500°F |
| Construction | Stainless steel front, sides and backriser; porcelain ovens |
| Gas Inlet Size | 3/4 Inch rear |
| Width | 63 Inches |
| Model | SX60F-6B24GN |
| Gas Type | Natural Gas |
| Burner Output | 28,000 BTU/hr each |
| Top Grates | 12″ x 12″ cast, with aeration bowls |
| Oven Interior (each) | 26 3/4″ W x 26″ D x 13 3/4″ H |
| Rack Positions | 4 per oven |
| Depth | 32 Inches |
| Overall Height | 58 Inches |
| Legs | 6 inch adjustable |
| Operating Gas Pressure | 5.0″ W.C. natural gas |
Description
Cooks who need burners, a griddle and two ovens side by side will find them in the SX60F-6B24GN. This natural gas 60-inch range totals 258,000 BTU/hr: six 28,000 BTU/hr burners, a 30,000 BTU/hr 24-inch griddle and a pair of 30,000 BTU/hr standard ovens. Our team can help you match the model to your gas supply and layout.
Key features
- Six 28,000 BTU/hr cast open burners with lift-off heads and a shrouded flash tube pilot for every two burners
- 24-inch wide griddle, 3/4 inch thick, rated 30,000 BTU/hr
- 12″ x 12″ cast top grates with aeration bowls and a welded crumb tray
- Two 30,000 BTU/hr standard ovens, each 26 3/4″ x 26″ x 13 3/4″, thermostat 250–500°F
- One oven rack with four rack positions in each oven, porcelain door liners and oven bottoms
- Stainless steel front, sides, backriser and lift-off high shelf on 6″ adjustable legs
Options
- Extra oven rack
- Reinforced backriser and high shelf for mounting a salamander broiler
- Set of six casters, two locking
Ideal for
Restaurants, hotels and institutional kitchens that need a full 60-inch cooking line with burners, a griddle and two ovens in one unit.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Which gas does the SX60F-6B24GN run on?
The trailing letter in the model number tells you: this one is the natural gas version. The supplied regulator is set for 5.0″ W.C., and the gas line must be 3/4 inch or larger.
Is the SX60F-6B24GN spec sheet available?

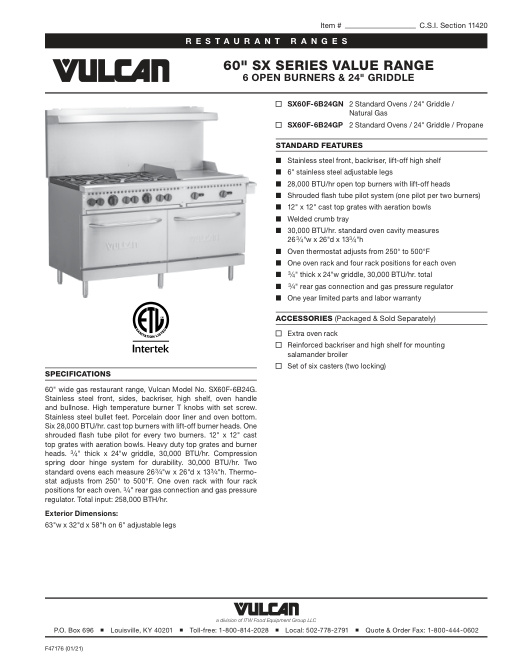

Yes. The official Vulcan 60-inch SX series sheet is in the download section below. It gives the specification, dimensions, shipping weight, gas pressures and clearances.
What clearances does the SX60F-6B24GN need?
Next to combustible construction the sheet lists 12 inches at the rear and 10 inches at the sides. For non-combustible walls it lists 6 inches at the rear and 0 at the sides.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
