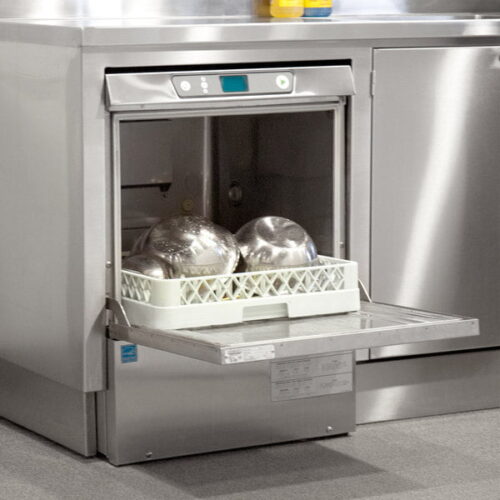

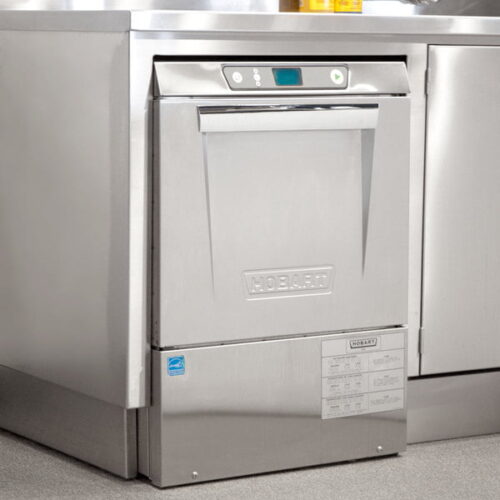

Hobart LXeH-5 Undercounter Dishwasher Hot Water Sanitizing 208-240V (3 Phase)
Best Price Guarantee in Canada
REQUEST A QUOTE
Need Help :
Specs
| Brand | HOBART |
|---|---|
| Model | LXeH-5 |
| Manufacturer Code | LXeH-5 |
| Product Line | LXe Series |
| Power Type | Electric |
| Voltage | 208–240 V |
| Phase | 3 Phase |
| Hertz | 60 Hertz |
| Amps | 23.9 A (30 A max. protective device) |
| High or Low Temp | High Temp |
| Booster Wattage | 4.9 kW |
| Racks Per Hour | 32 |
| Water Usage | 0.74 Gallons Per Rack |
| Wash Tank Capacity | 2.9 gal. |
| Door Opening Height | 17 Inches |
| Installation Type | Undercounter |
| Water Inlet Size | 3/4″ female garden hose |
| Certificate | UL listed, NSF |
| Width | 23 15/16 Inches |
| Shipping Weight | 170 lb |
| Depth | 25 9/16 Inches |
| Height | 32 1/2 Inches |
| Cycle Time | 109 seconds |
| Dishes per Hour | 800 (25 per rack) |
| Glasses per Hour | 1,152 (36 per rack) |
| Wash / Rinse Temperature | 150°F / 180°F |
| Minimum Incoming Water | 110°F |
| Water Pressure | 15–65 PSIG flowing |
| Water per Hour | 23 gal (maximum) |
| Tank Heat | 1.8 kW |
| Wash / Rinse Motor | 0.85 HP / 0.19 HP |
| Drain | Pumped, 5/8″ barb, 4.0 gpm peak |
| Rack Size | 20″ × 20″ (1 flat, 1 peg included) |
| Heat Output | 4,600 BTU/hr latent, 4,000 BTU/hr sensible |
| Other Voltages | 208–240 V/1 ph and 120/208–240 V (3-wire)/1 ph: 30.5 A |
Description
The Hobart LXeH-5 is a high-temperature undercounter dishwasher from Hobart’s LXe series. The Hobart LXeH sanitizes with hot water: its built-in booster heats the final rinse to 180°F, so no chemical sanitizer is needed. It washes up to 32 racks an hour on just 0.74 gallons per rack, which makes it a strong fit for bars, cafés and smaller restaurants that want commercial results under the counter.
Key features
- 32 racks per hour with a 109-second cycle – about 800 dishes or 1,150 glasses an hour
- 0.74 gallons of water per rack, so water, chemical and heating costs stay low
- Sense-A-Temp™ booster heater with a 70°F rise for a 180°F sanitizing rinse
- 17″ door opening for tall glassware, trays and taller items
- Low chemical alert, delime notification and chemical pump auto-prime
- Advanced service diagnostics and top-mounted digital controls with status indicators

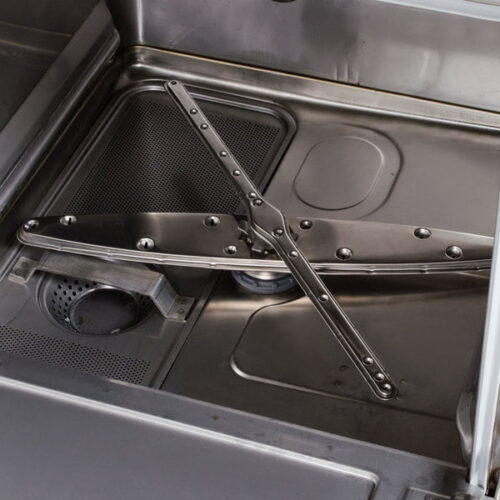

- Deep-drawn stainless steel tank, revolving interchangeable anti-clogging wash and rinse arms and a removable scrap screen
- Automatic fill, automatic pumped drain, and detergent and rinse-aid pumps as standard
Ideal for
Bars, cafés, quick-service and full-service restaurants, offices and small institutional kitchens that need a high-temperature dishwasher under the counter.
Why buy from Babak Food Equipment?
- 20+ years in business and a 4.9★ Google rating from 380+ reviews.
- Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
- Delivery and installation options across BC – details and costs are discussed when you order.
FAQ
Where can I find the Hobart LXeH spec sheet and manual?

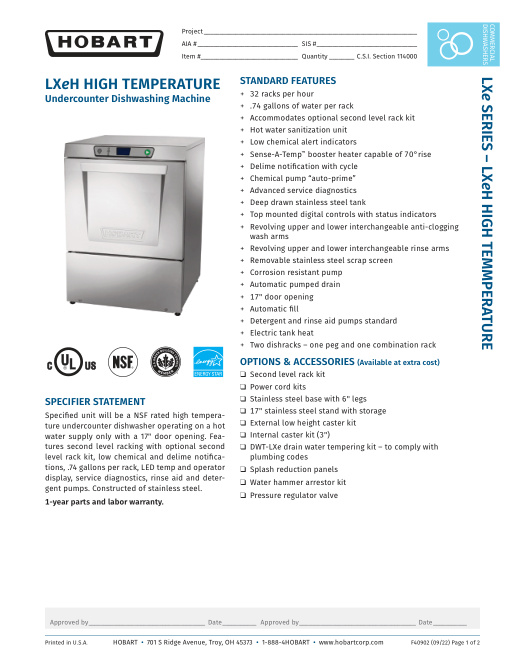

The official Hobart LXeH spec sheet, the LXe manual and the manager programming card are in the download section below. The spec sheet shows dimensions, clearances and electrical and plumbing connections.
What is the difference between the Hobart LXeH and LXeC?
The LXeH is a high-temperature machine: its booster heats the rinse to 180°F. The LXeC is the chemical-sanitizing version, which injects sanitizer into the final rinse and needs hotter incoming water. Our team can help you choose.
What water supply does the LXeH need?
Hobart recommends incoming hot water of at least 110°F at 15–65 PSIG flowing pressure, through the 3/4″ garden-hose fill connection. A pressure regulator is needed above 65 PSIG.
Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
