Vulcan 3GR45MF-2 Gas Fryer Battery, 3 x 45–50 lb, Built-In Filtration

Description

Menus with several fried items need separate pots, and the Vulcan 3GR45MF-2 delivers three 45–50 lb tanks in one 46 1/2 inch line. Millivolt thermostats run each fryer from 200°F to 400°F, and a single filter system with a 1/3 HP pump serves the battery, cutting down on oil changes and wasted shortening.

Key features

• 45–50 lb stainless steel fry tank in every cabinet, each with 120,000 BTU/hr input and four heat exchanger tubes
• Built-in KleenScreen PLUS filtration with a 1/3 HP pump moving oil at 8 gpm and a stainless steel mesh screen that filters from two sides
• Stainless steel filter pan with 70 lb frying compound capacity, plus Boil Out ByPass and a hands-free oil return line
• Millivolt thermostats adjust from 200°F to 400°F, with hi-limit shut-off and a pilot safety system
• V-shaped cold zone and a 1 1/4″ full port ball type drain valve on every tank
• Twin fry baskets with plastic coated handles for each fryer, with tank brush, clean-out rod and high temperature discard hose
• 6″ adjustable casters (2 locking) and a stainless steel cabinet

Options

• Micro-filtration envelopes that filter down to 0.5 microns, tank covers, Frymate dump station, rear oil reclamation connection and flexible gas hose

Ideal for

Busy restaurants, hotels and institutional kitchens that fry in volume and want filtration built into the fryer line.

Why buy from Babak Food Equipment?

• 20+ years in business and a 4.9★ Google rating from 380+ reviews.
• Expert advice – our team helps you compare models and check power, gas and ventilation requirements.
• Delivery and installation options across BC – details and costs are discussed when you order.

FAQ

Can one filter serve all three fryers on the 3GR45MF-2?
Yes. The built-in filter system accommodates up to four GR45 fryer cabinets, so a three-fryer battery is served by one pump and filter pan.

Is the Vulcan 3GR45MF-2 spec sheet available?

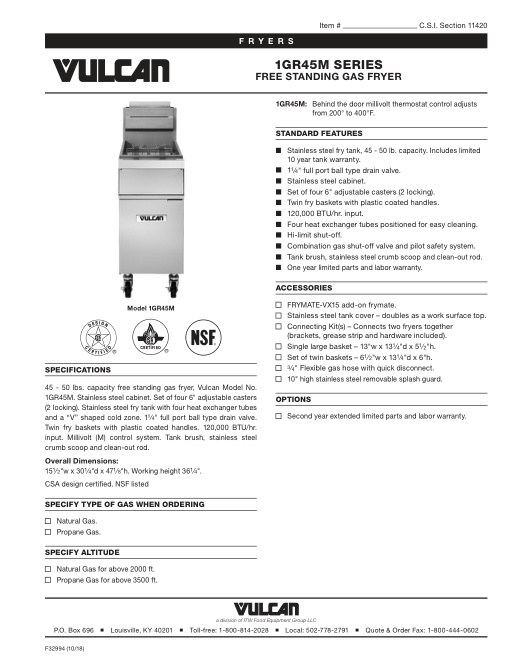

Yes. The official Vulcan GR45 series fryer spec sheet is in the download section below. It covers the fryer and the built-in filter system, including gas connections, clearances and accessories.

What gas and electrical connections does the 3GR45MF-2 need?
It needs a 1 1/4″ NPT common rear gas connection and a 120 V, 60 Hz, single phase outlet (NEMA 5-15P) for the filter pump. Clearance is 6″ at the sides and rear to combustibles.

Please request a quote to confirm availability before you buy. Pricing, availability, warranty terms, delivery and installation are all confirmed at the time of purchase.
